SKU: RPB30-XL-INA

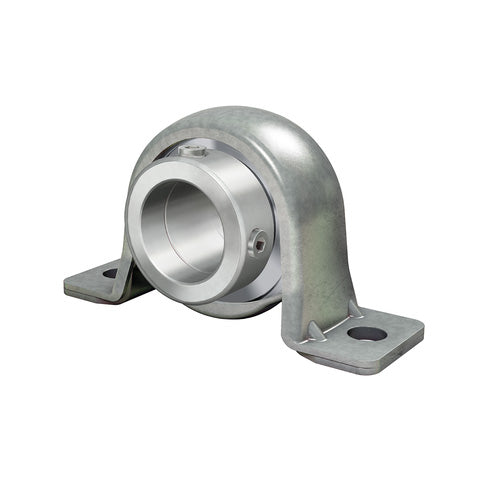

INA RPB30XL Sheet Steel Plummer Block Housing with Eccentric Collar Insert and Rubber Interliner 30mm Bore

Name: INA RPB30XL Sheet Steel Plummer Block Housing with Eccentric Collar Insert and Rubber Interliner 30mm Bore
Brand: INA
SKU: RPB30-XL-INA
Price: 65.08 USD
Availability: InStock

$65.08 ex VAT

Sale Sold out

In stock

Price Break

4+ $43.59

9+ $41.14

19+ $40.65

29+ $40.16

39+ $39.67

49+ $39.18

59+ $36.74

69+ $36.25

79+ $35.76

89+ $35.27

99+ $34.29

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: INA - High Quality
Inside Diameter:: 30mm
Style:: PPB
Bolt Hole Centres:: 95mm

Technical

d	30mm
L	117.5mm
H2	66.1mm
A	38mm
A1	26.5mm
B1	26.5mmd3 max
42.5mm	H
33.3mm	H1
4mm	J
95mm	N
11.5mm	S1
20mm	Mass
0.45 kg	Load carrying capacity of housing Cor G
1400 N	Basic dynamic load rating Cr
14100 N	Basic static load rating Cor
8300 N	Designation of housing
GEH62-BT?	Designation of bearing
RALE30-XL-NPP-B?	Designation of rubber interliner
GRG.RABR55/62?	N/A
