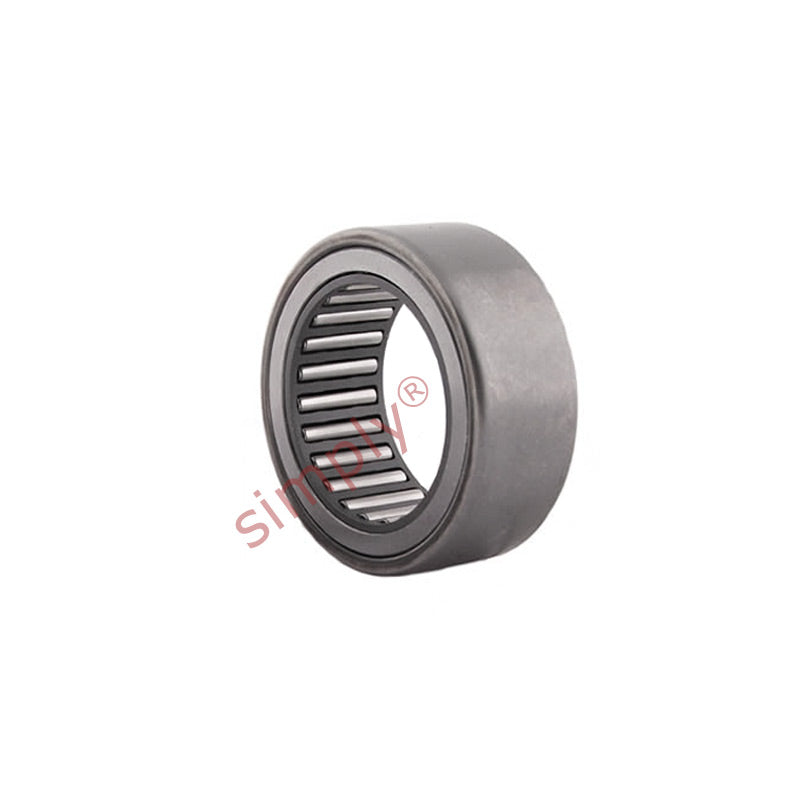

• Major Brand RPNA18/32 Needle Roller Bearing Alignment Type Without Shaft Sleeve 18x32x16
1 1

SKU: RPNA18/32-MB

Major Brand RPNA18/32 Needle Roller Bearing Alignment Type Without Shaft Sleeve 18x32x16

Major Brand RPNA18/32 Needle Roller Bearing Alignment Type Without Shaft Sleeve 18x32x16
$38.16 ex VAT
$38.16 ex VAT
Sale Sold out

In stock

Price Break
10+ $25.56
19+ $24.13
29+ $23.84
39+ $23.55
49+ $23.26
74+ $22.98
99+ $21.54
199+ $21.25
249+ $20.97
499+ $20.68
999+ $20.10

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Alignment Needle Roller without Inner Ring: Alignment type needle roller bearings have a convex outside surface which is located in a plastic seating ring with a concaved inner face to match that of the bearing which is located in a drawn sheet steel outer ring allowing for some degree of self alignment.
Benefits: Supplied without the inner ring, tolerates misalignment
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
18mm
Outside Diameter:
32mm
Width:
16mm
Technical
Fw 18mm
D 32mm
B 16mm
Dynamic load 12800 N
Static load 17600 N
Fatigue load limit Pu 2120 N
Speed in grease 15000 rpm
Speed in oil 22000 rpm
D1 27mm
r min 1mm
Da min 26mm
Da max 27mm
ra max 1mm
Weight 52 g
