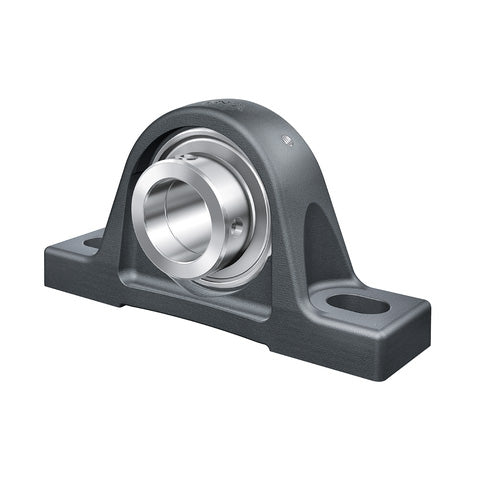

• INA RSAO50XL Cast Iron Plummer Block Housing with Eccentric Collar Insert 50mm Bore
  • INA
1 2

SKU: RSAO50-XL-INA

INA RSAO50XL Cast Iron Plummer Block Housing with Eccentric Collar Insert 50mm Bore

INA RSAO50XL Cast Iron Plummer Block Housing with Eccentric Collar Insert 50mm Bore
$232.30 ex VAT
$232.30 ex VAT
Sale Sold out

In stock

Price Break
4+ $155.60
9+ $146.86
19+ $145.11
29+ $143.36
39+ $141.61
49+ $139.86
59+ $131.12
69+ $129.37
79+ $127.63
89+ $125.88
99+ $122.38

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
INA Plummer Block Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This cast iron housing is a single-piece unit with a high load carrying capacity and features a lubrication groove to facilitate relubrication of the bearing insert. This plummer block housing has a long base and is screw mounted to the adjacent construction by means of slots. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out.
Benefits: High load carrying capacity, re-lubricatable, eccentric collar, tolerates misalignment of the shaft.
Brand / Quality:
INA - High Quality
Inside Diameter:
50mm
Style:
RSAO
Bolt Hole Centres:
212mm
Technical
d 50mm
L 275mm
H2 143mm
A 75mm
A1 39mm
B1 66.75mm75.8mm
H 75mm
H1 27mm
J 212mm
N 20mm
N1 35mm
Q M6
S1 42.15mm
Mass 6.1 kg
Basic dynamic load rating Cr 66000 N
Basic static load rating Cor 38000 N
Designation of housing SAO10
Designation of bearing GNE50-XL-KRR-B
