SKU: RSHE35-XL-N-INA

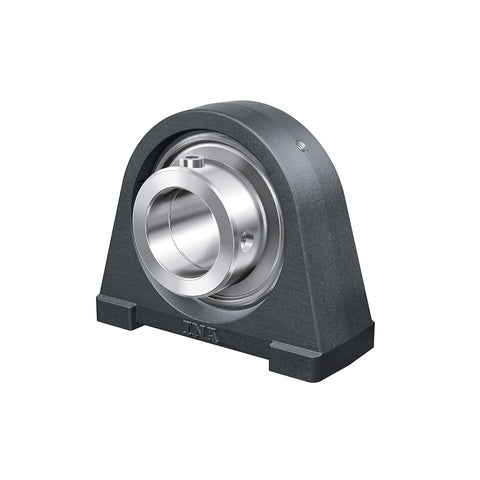

INA RSHE35XLN Cast Iron Threaded Base Plummer Block Housing with Eccentric Collar Insert 35mm Bore

INA RSHE35XLN Cast Iron Threaded Base Plummer Block Housing with Eccentric Collar Insert 35mm Bore
$88.40 ex VAT
$88.40 ex VAT
Sale Sold out

In stock

Price Break
4+ $59.21
9+ $55.89
19+ $55.22
29+ $54.55
39+ $53.89
49+ $53.22
59+ $49.90
69+ $49.23
79+ $48.57
89+ $47.90
99+ $46.57

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
INA Plummer Block Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This cast iron housing is a single-piece unit with a high load carrying capacity and features a lubrication groove to facilitate relubrication of the bearing insert. This plummer block housing has a short base and is screw mounted to the adjacent construction by blind threaded holes. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out.
Benefits: High load carrying capacity, re-lubricatable, eccentric collar, tolerates misalignment of the shaft.
Brand / Quality:
INA - High Quality
Inside Diameter:
35mm
Style:
RSHE
Bolt Hole Centres:
82.6mm
Technical
d 35mm
L 103mm
H2 93mm
A 45mm
A1 27mm
B1 51.3mm
d3 max 55mm
H 47.6mm
J 82.6mm
K M10
Q M6
S1 32.5mm
Mass 1.38 kg
Basic dynamic load rating Cr 27500 N
Basic static load rating Cor 15300 N
Designation of housing SHE07
Designation of bearing GE35-XL-KRR-B
Bearing end cap, closed design (to be ordered separately) KASK07
