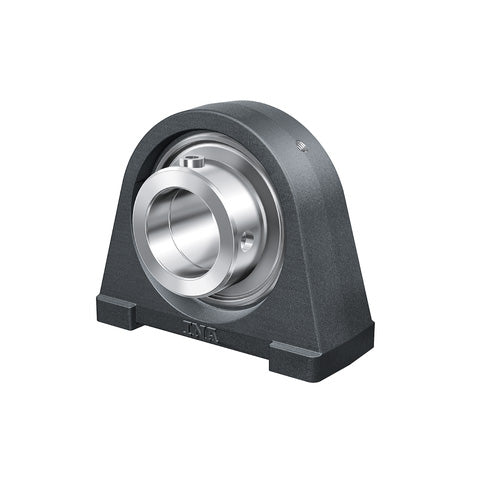

• INA RSHEY20TVVAHLA Plastic Threaded Base Plummer Block Housing with Grub Screw Insert Corrosion-Resistant Design 20mm Bore
  • INA
1 2

SKU: RSHEY20-TV-VA-INA

INA RSHEY20TVVAHLA Plastic Threaded Base Plummer Block Housing with Grub Screw Insert Corrosion-Resistant Design 20mm Bore

INA RSHEY20TVVAHLA Plastic Threaded Base Plummer Block Housing with Grub Screw Insert Corrosion-Resistant Design 20mm Bore
$139.10 ex VAT
$139.10 ex VAT
Sale Sold out

In stock

Price Break
4+ $93.17
9+ $87.94
19+ $86.89
29+ $85.85
39+ $84.80
49+ $83.75
59+ $78.52
69+ $77.47
79+ $76.42
89+ $75.38
99+ $73.28

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
INA Plummer Block Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with grub screws in the inner ring. This plastic housing is a single-piece unit which features a lubrication groove to facilitate relubrication of the bearing insert. This plummer block housing has a short base and is screw mounted to the adjacent construction by blind threaded holes. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out. The insert bearing is made from corrosion-resistant steel which makes this suitable for use if moisture, contaminated water, salt spray mist, weakly alkaline or weakly acidic cleaning agents are present.
Benefits: Re-lubricatable, grub screw fixing, tolerates misalignment of the shaft, corrosion-resistant.
Brand / Quality:
INA - High Quality
Inside Diameter:
20mm
Style:
RSHEY
Bolt Hole Centres:
50.8mm
Technical
d 20mm
L 72.8mm
H2 66mm
A 34.5mm
B 31mm
H 33.3mm
J 50.8mm
K M8
Q 1/4 - 28 UNF
S1 18.3mm
Mass 0.29 kg
Basic dynamic load rating Cr 12300 N
Basic static load rating Cor 6300 N
Load carrying capacity of housing Cor G 6900 N
Designation of housing GEH.SHE04-TV
Designation of bearing GYE20-KRR-B-FA107-VA
Bearing end cap, closed design KASK04-S-G
Bearing end cap (available by agreement) KASK04-S-R-NBR
