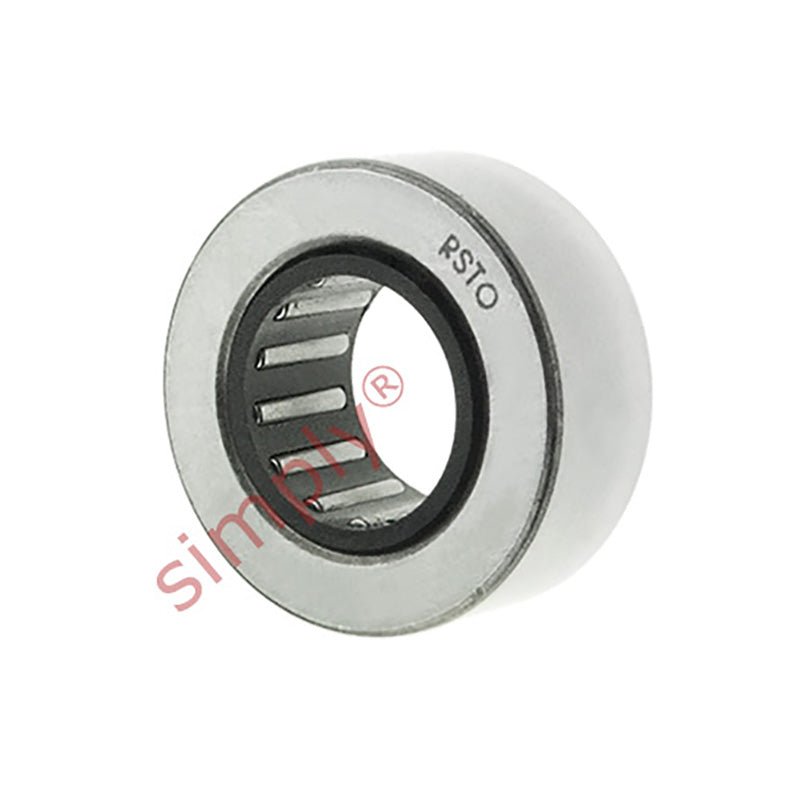

• RSTO10 Budget Support Roller no Axial Guidance no Inner Sleeve 14x30x11.8mm
1 1

SKU: RSTO10-EU

RSTO10 Budget Support Roller no Axial Guidance no Inner Sleeve 14x30x11.8mm

RSTO10 Budget Support Roller no Axial Guidance no Inner Sleeve 14x30x11.8mm
$30.60 ex VAT
$30.60 ex VAT
Sale Sold out

In stock

Price Break
10+ $20.50
19+ $19.34
29+ $19.11
39+ $18.88
49+ $18.65
74+ $18.42
99+ $17.27
199+ $17.04
249+ $16.81
499+ $16.58
999+ $16.12

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Budget Support Rollers without Axial Guidance: Designed for applications where the associated components can be designed to to provide the axial guidance. The support rollers without inner rings are intended for arrangements where the pin or shaft can be hardened and ground.
Benefits: Supplied without the inner ring, separable - easily mounted

Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
14mm
Outside Diameter:
30mm
Width:
11.8mm
Technical
D 30mm
C 11.8mm
Fw 14mm
E 20mm
r min 0.3mm
Speed rating 5500 rpm
Dynamic load 8250 N
Static load 8800 N
Fatigue load limit Pu 1040 N
Min radial force dynamic load 8500 N
Max radial force dynamic load 12200 N
Weight 42 g
