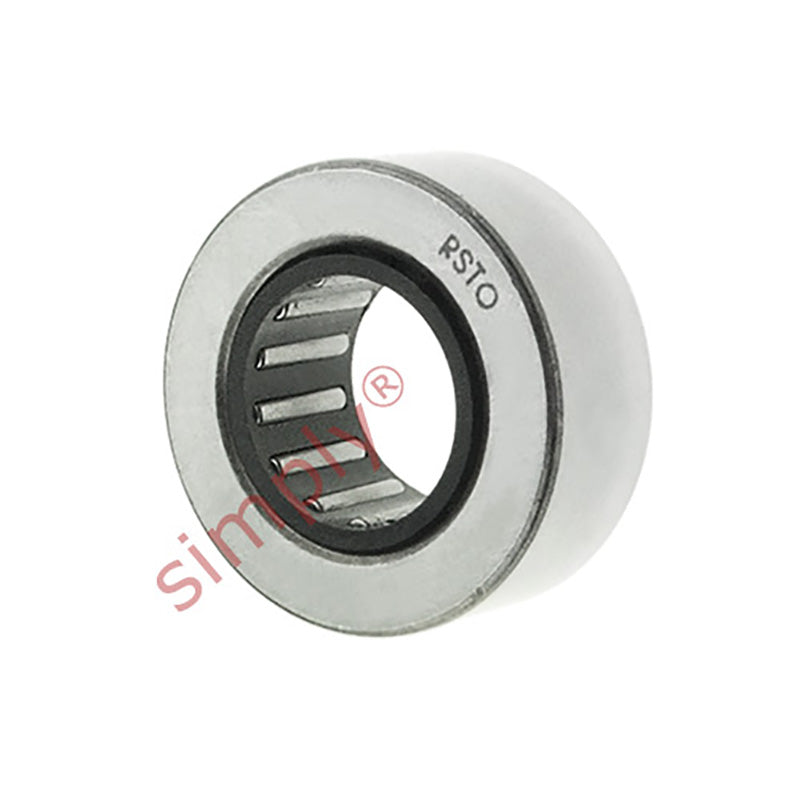

• Major Brand RSTO35 Support Roller Without Axial Guidance Without Inner Sleeve 42x72x19.8mm
1 1

SKU: RSTO35-MB

Major Brand RSTO35 Support Roller Without Axial Guidance Without Inner Sleeve 42x72x19.8mm

Major Brand RSTO35 Support Roller Without Axial Guidance Without Inner Sleeve 42x72x19.8mm
$85.74 ex VAT
$85.74 ex VAT
Sale Sold out

In stock

Price Break
10+ $57.43
19+ $54.21
29+ $53.56
39+ $52.92
49+ $52.27
74+ $51.63
99+ $48.40
199+ $47.75
249+ $47.11
499+ $46.46
999+ $45.17

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Support Rollers without Axial Guidance : Designed for applications where the associated components can be designed to to provide the axial guidance. The support rollers without inner rings are intended for arrangements where the pin or shaft can be hardened and ground.
Benefits: Supplied without the inner ring, separable - easily mounted

Brand / Quality:
Major Brand - High Quality
Inside Diameter:
42mm
Outside Diameter:
72mm
Width:
19.8mm
Technical
Fw 42mm
D 72mm
C 19.8mm
E 50mm
r min 0.6mm
Speed rating 1100 rpm
Dynamic load 24600 N
Static load 39000 N
Fatigue load limit Pu 4800 N
Min radial force dynamic load 36000 N
Max radial force dynamic load 51000 N
Weight 380 g
