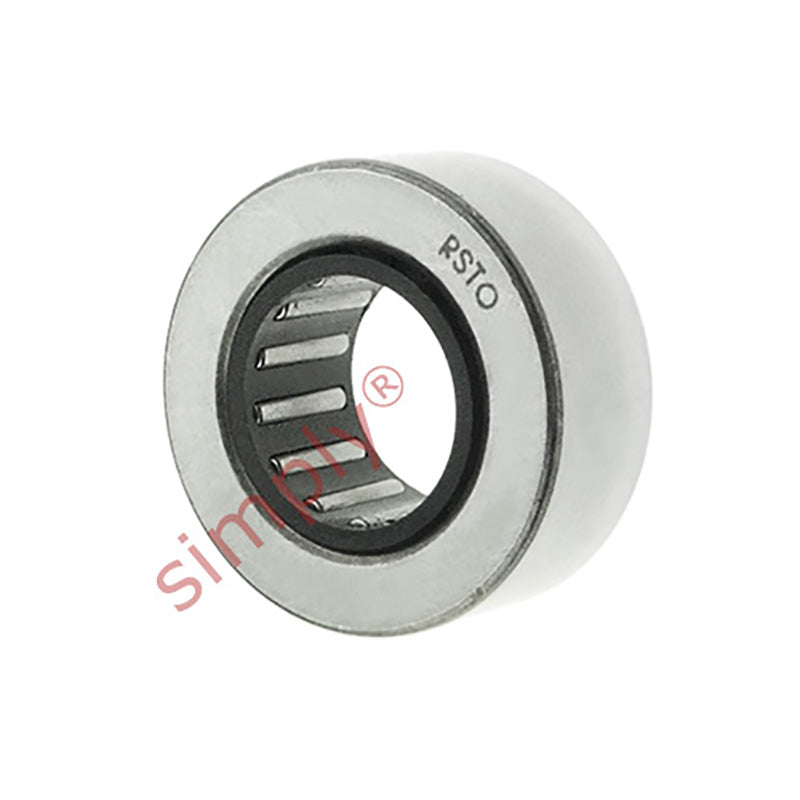

• RSTO40 Budget Support Roller no Axial Guidance no Inner Sleeve 50x80x19.8mm
1 1

SKU: RSTO40-EU

RSTO40 Budget Support Roller no Axial Guidance no Inner Sleeve 50x80x19.8mm

RSTO40 Budget Support Roller no Axial Guidance no Inner Sleeve 50x80x19.8mm
$45.95 ex VAT
$45.95 ex VAT
Sale Sold out

In stock

Price Break
10+ $30.77
19+ $29.05
29+ $28.70
39+ $28.35
49+ $28.01
74+ $27.66
99+ $25.93
199+ $25.59
249+ $25.24
499+ $24.90
999+ $24.20

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Budget Support Rollers without Axial Guidance: Designed for applications where the associated components can be designed to to provide the axial guidance. The support rollers without inner rings are intended for arrangements where the pin or shaft can be hardened and ground.
Benefits: Supplied without the inner ring, separable - easily mounted

Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
50mm
Outside Diameter:
80mm
Width:
19.8mm
Technical
D 80mm
C 19.8mm
Fw 50mm
E 58mm
r min 1mm
Speed rating 850 rpm
Dynamic load 23800 N
Static load 39000 N
Fatigue load limit Pu 4750 N
Min radial force dynamic load 34500 N
Max radial force dynamic load 49000 N
Weight 420 g
