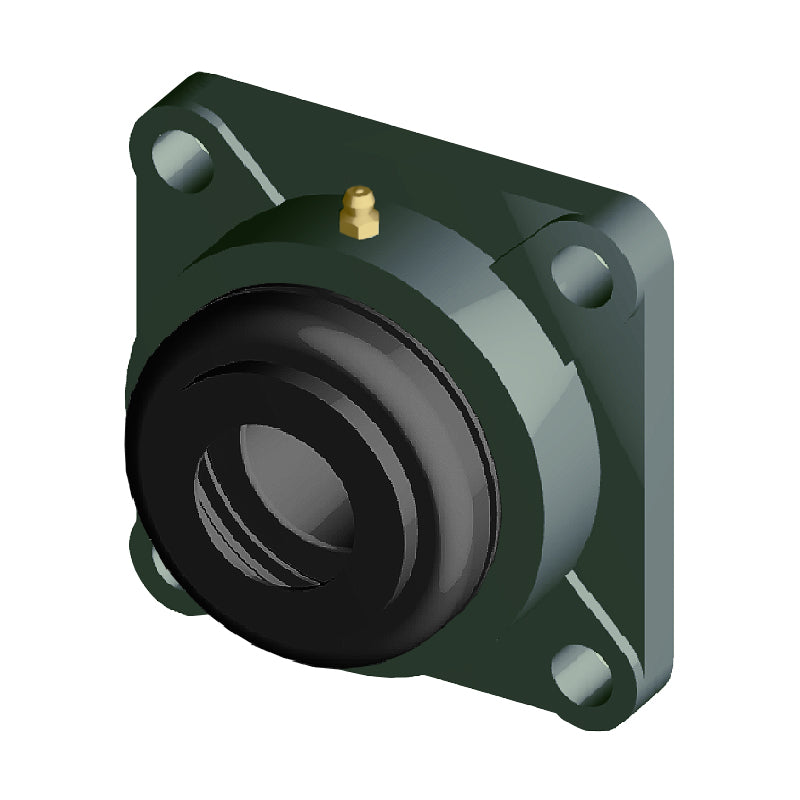

• NTN S-UCF205D1 Metric Four Bolt Square Cast Iron Flange Housing with 25mm Bore Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
1 1

SKU: S-UCF205D1-NTN

NTN S-UCF205D1 Metric Four Bolt Square Cast Iron Flange Housing with 25mm Bore Insert with Steel Plate Cover - Open Version - Allow 2-3 Days

NTN S-UCF205D1 Metric Four Bolt Square Cast Iron Flange Housing with 25mm Bore Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
$41.24 ex VAT
$41.24 ex VAT
Sale Sold out

In stock

Price Break
3+ $30.72
4+ $29.48
9+ $28.86
19+ $27.93
49+ $27.31
99+ $25.75
499+ $21.72
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
NTN - High Quality
Inside Diameter:
25mm
Style:
UCF
Bolt Hole Centres:
70mm
Technical
--- Dimensions
Shaft diameter 25mm
L 95mm
J 70mm
A<sub>2</sub> 16mm
A<sub>1</sub> 13mm
A 27mm
N 12mm
B 34.1mm
S 14.3mm
A<sub>4</sub> 44.5mm
Fixing bolt M10
--- Load rating
Dynamic load C<sub>r</sub> 15.5 kN
Static load C<sub>0r</sub> 7.85 kN
Fatigue load limit C<sub>u</sub> 0.55 kN
--- Unit information
Mass 0.8 kg
