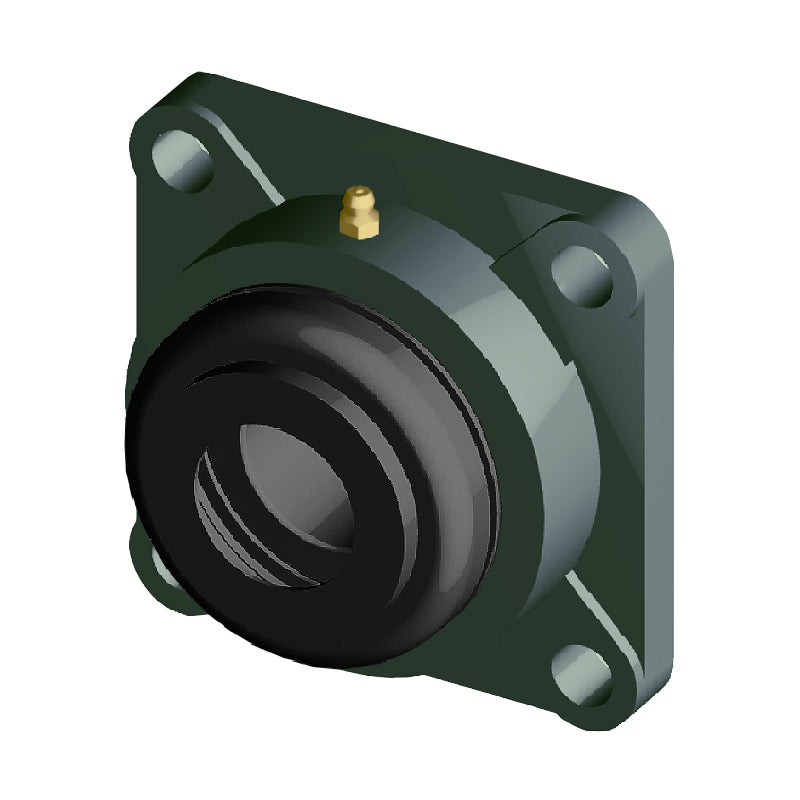

• NTN S-UCF209D1 Metric Four Bolt Square Cast Iron Flange Housing with 45mm Bore Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
  • NTN
1 2

SKU: S-UCF209D1-NTN

NTN S-UCF209D1 Metric Four Bolt Square Cast Iron Flange Housing with 45mm Bore Insert with Steel Plate Cover - Open Version - Allow 2-3 Days

NTN S-UCF209D1 Metric Four Bolt Square Cast Iron Flange Housing with 45mm Bore Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
$65.96 ex VAT
$65.96 ex VAT
Sale Sold out

In stock

Price Break
3+ $44.18
4+ $41.70
9+ $41.20
19+ $40.70
49+ $40.21
99+ $39.71
499+ $37.23
999+ $36.73
1999+ $36.24
2999+ $35.74
4999+ $34.75

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
NTN - High Quality
Inside Diameter:
45mm
Style:
UCF
Bolt Hole Centres:
105mm
Technical
--- Dimensions
Shaft diameter 45mm
L 137mm
J 105mm
A<sub>2</sub> 22mm
A<sub>1</sub> 16mm
A 38mm
N 16mm
B 49.2mm
S 19mm
A<sub>4</sub> 63mm
Fixing bolt M14
--- Load rating
Dynamic load C<sub>r</sub> 36 kN
Static load C<sub>0r</sub> 20.4 kN
Fatigue load limit C<sub>u</sub> 1.6 kN
--- Unit information
Mass 2.2 kg
