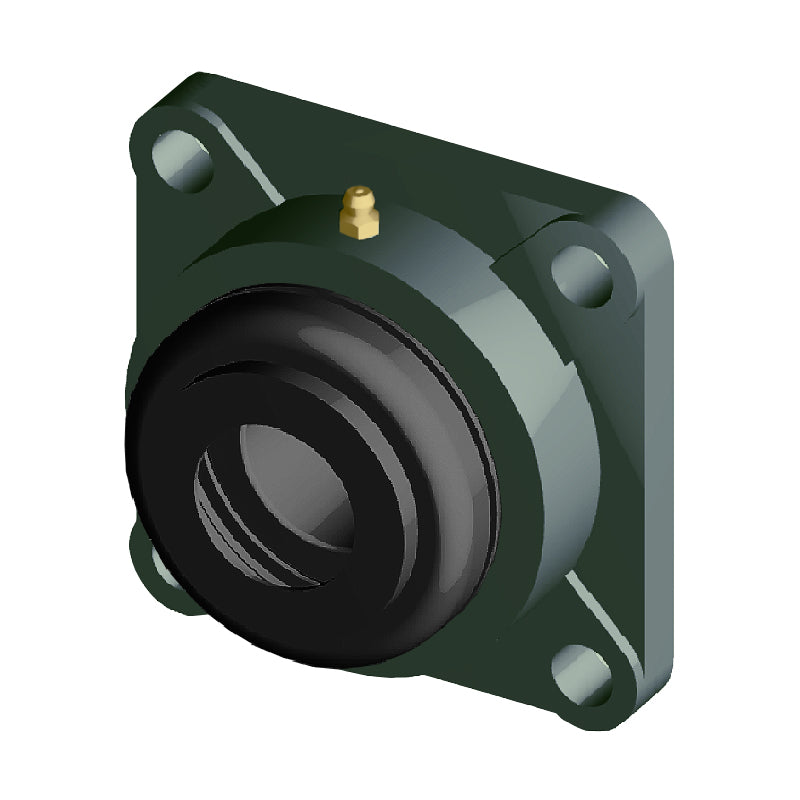

• NTN S-UCF212D1 Metric Four Bolt Square Cast Iron Flange Housing with 60mm Bore Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
  • NTN
1 2

SKU: S-UCF212D1-NTN

NTN S-UCF212D1 Metric Four Bolt Square Cast Iron Flange Housing with 60mm Bore Insert with Steel Plate Cover - Open Version - Allow 2-3 Days

NTN S-UCF212D1 Metric Four Bolt Square Cast Iron Flange Housing with 60mm Bore Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
$106.77 ex VAT
$106.77 ex VAT
Sale Sold out

In stock

Price Break
3+ $71.52
4+ $67.50
9+ $66.70
19+ $65.90
49+ $65.09
99+ $64.29
499+ $60.27
999+ $59.47
1999+ $58.66
2999+ $57.86
4999+ $56.25

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
60mm
Style:
UCF
Bolt Hole Centres:
143mm
Technical

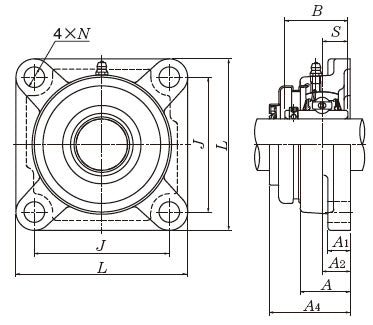

--- Dimensions
Shaft diameter 60mm
L 175mm
J 143mm
A<sub>2</sub> 29mm
A<sub>1</sub> 18mm
A 48mm
N 19mm
B 65.1mm
S 25.4mm
A<sub>4</sub> 80mm
Fixing bolt M16
--- Load rating
Dynamic load C<sub>r</sub> 58 kN
Static load C<sub>0r</sub> 36 kN
Fatigue load limit C<sub>u</sub> 2.83 kN
--- Unit information
Mass 4.1 kg
