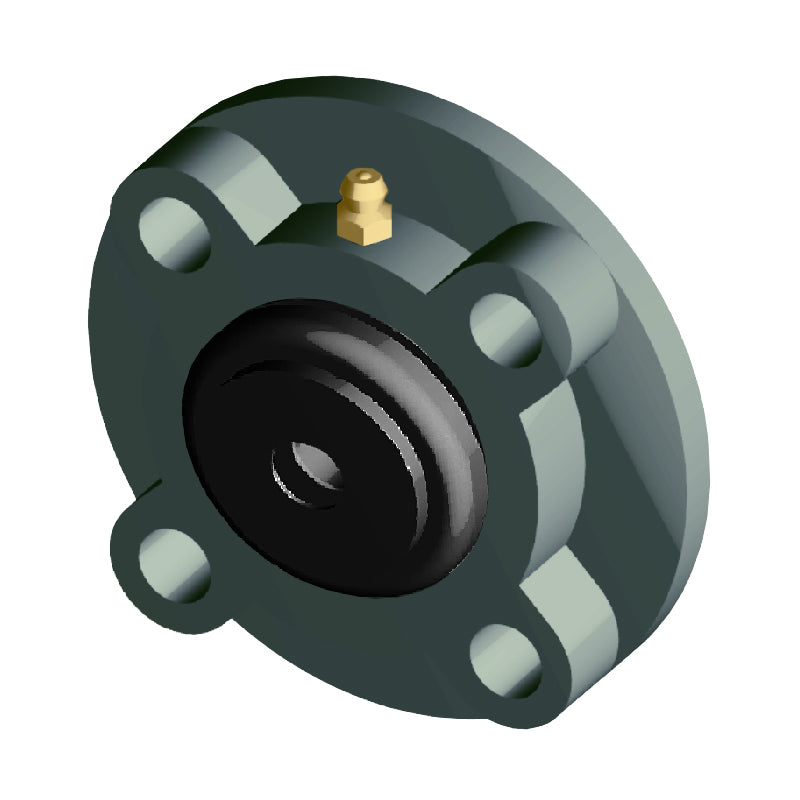

• NTN S-UCFC204D1 Metric Four Bolt Cast Iron Round Flanged Housing with 20mm Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
1 1

SKU: S-UCFC204D1-NTN

NTN S-UCFC204D1 Metric Four Bolt Cast Iron Round Flanged Housing with 20mm Insert with Steel Plate Cover - Open Version - Allow 2-3 Days

NTN S-UCFC204D1 Metric Four Bolt Cast Iron Round Flanged Housing with 20mm Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
$41.20 ex VAT
$41.20 ex VAT
Sale Sold out

In stock

Price Break
3+ $30.69
4+ $29.45
9+ $28.83
19+ $27.90
49+ $27.28
99+ $25.73
499+ $21.70
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCFC Series 4 Bolt Round Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication, this style has the benefit of a shouldered back face to facilitate location of the housing prior to fastening in place. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
NTN - High Quality
Inside Diameter:
20mm
Style:
UCFC
Pitch Circle Diameter:
55.2mm
Technical
--- Dimensions
Shaft diameter 20mm
L 100mm
J 78mm
(J<sub>1</sub>) 55.2mm
A<sub>2</sub> 10mm
N 12mm
A<sub>3</sub> 5mm
A<sub>1</sub> 20.5mm
A 25.5mm
H<sub>3</sub> 62mm
B 31mm
S 12.7mm
A<sub>4</sub> 405mm
Fixing bolt M10
--- Load rating
Dynamic load C<sub>r</sub> 14.2 kN
Static load C<sub>0r</sub> 6.65 kN
Fatigue load limit C<sub>u</sub> 0.505 kN
--- Unit information
Mass 0.7 kg
