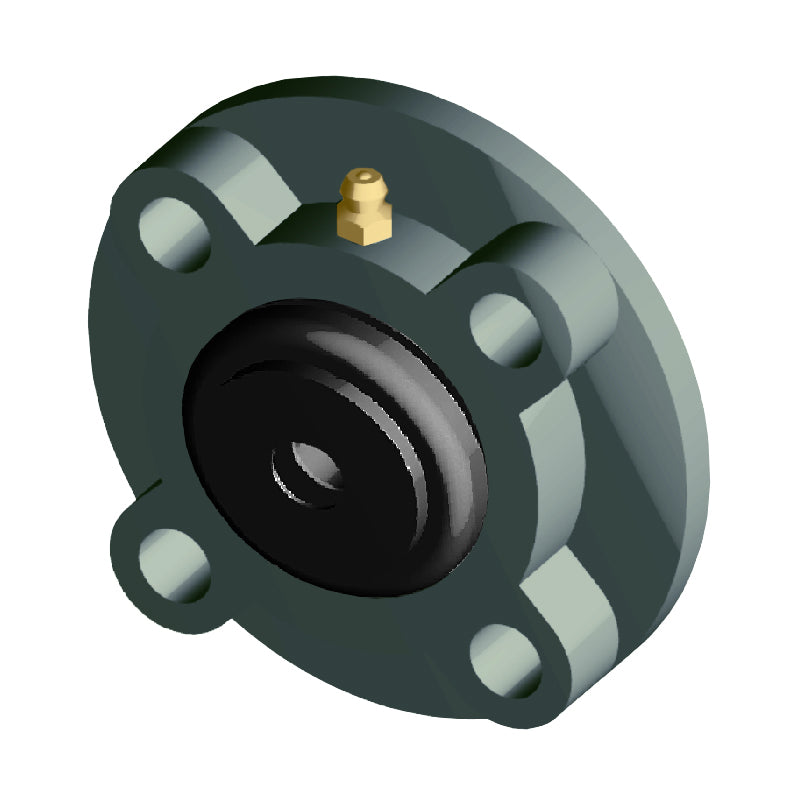

• NTN S-UCFC207D1 Metric Four Bolt Cast Iron Round Flanged Housing with 35mm Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
1 1

SKU: S-UCFC207D1-NTN

NTN S-UCFC207D1 Metric Four Bolt Cast Iron Round Flanged Housing with 35mm Insert with Steel Plate Cover - Open Version - Allow 2-3 Days

NTN S-UCFC207D1 Metric Four Bolt Cast Iron Round Flanged Housing with 35mm Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
$73.54 ex VAT
$73.54 ex VAT
Sale Sold out

In stock

Price Break
3+ $54.79
4+ $52.57
9+ $51.47
19+ $49.81
49+ $48.70
99+ $45.93
499+ $38.74
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCFC Series 4 Bolt Round Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication, this style has the benefit of a shouldered back face to facilitate location of the housing prior to fastening in place. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
NTN - High Quality
Inside Diameter:
35mm
Style:
UCFC
Pitch Circle Diameter:
77.8mm
Technical
--- Dimensions
Shaft diameter 35mm
L 135mm
J 110mm
(J<sub>1</sub>) 77.8mm
A<sub>2</sub> 11mm
N 14mm
A<sub>3</sub> 8mm
A<sub>1</sub> 26mm
A 34mm
H<sub>3</sub> 90mm
B 42.9mm
S 17.5mm
A<sub>4</sub> 55mm
Fixing bolt M12
--- Load rating
Dynamic load C<sub>r</sub> 28.4 kN
Static load C<sub>0r</sub> 15.3 kN
Fatigue load limit C<sub>u</sub> 1.09 kN
--- Unit information
Mass 1.7 kg
