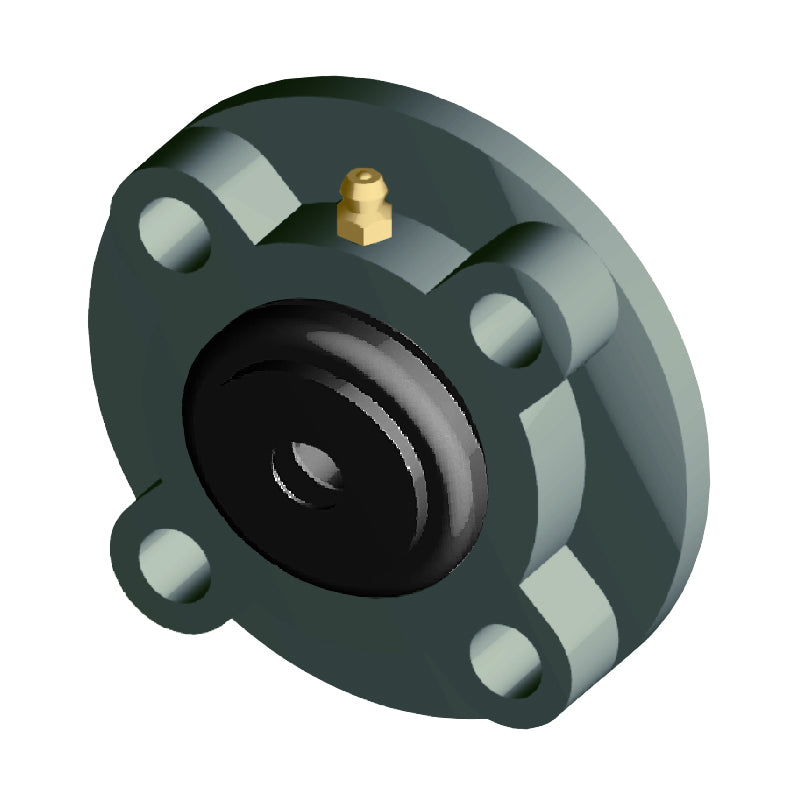

• NTN S-UCFC213D1 Metric Four Bolt Cast Iron Round Flanged Housing with 65mm Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
1 1

SKU: S-UCFC213D1-NTN

NTN S-UCFC213D1 Metric Four Bolt Cast Iron Round Flanged Housing with 65mm Insert with Steel Plate Cover - Open Version - Allow 2-3 Days

NTN S-UCFC213D1 Metric Four Bolt Cast Iron Round Flanged Housing with 65mm Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
$176.80 ex VAT
$176.80 ex VAT
Sale Sold out

In stock

Price Break
3+ $131.71
4+ $126.39
9+ $123.73
19+ $119.74
49+ $117.08
99+ $110.42
499+ $93.13
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCFC Series 4 Bolt Round Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication, this style has the benefit of a shouldered back face to facilitate location of the housing prior to fastening in place. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
NTN - High Quality
Inside Diameter:
65mm
Style:
UCFC
Pitch Circle Diameter:
120.2mm
Technical
--- Dimensions
Shaft diameter 65mm
L 205mm
J 170mm
(J<sub>1</sub>) 120.2mm
A<sub>2</sub> 16mm
N 19mm
A<sub>3</sub> 14mm
A<sub>1</sub> 36mm
A 50mm
H<sub>3</sub> 145mm
B 65.1mm
S 25.4mm
A<sub>4</sub> 83.5mm
Fixing bolt M16
--- Load rating
Dynamic load C<sub>r</sub> 63.5 kN
Static load C<sub>0r</sub> 40 kN
Fatigue load limit C<sub>u</sub> 3.15 kN
--- Unit information
Mass 6 kg
