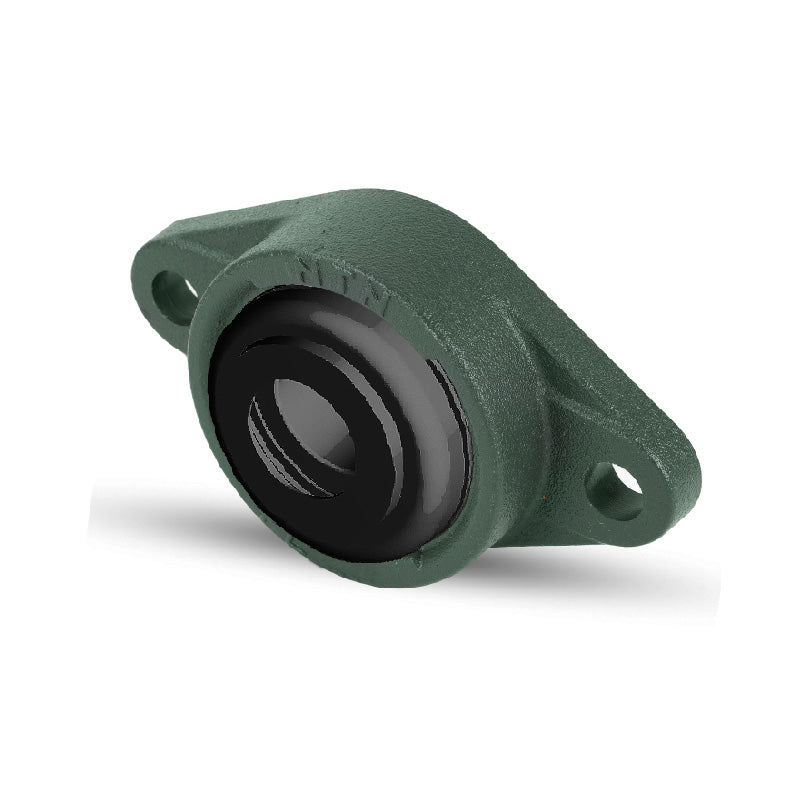

• NTN S-UCFL206D1 Metric Two Bolt Oval Cast Iron Flange Housing with 30mm Bore Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
1 1

SKU: S-UCFL206D1-NTN

NTN S-UCFL206D1 Metric Two Bolt Oval Cast Iron Flange Housing with 30mm Bore Insert with Steel Plate Cover - Open Version - Allow 2-3 Days

NTN S-UCFL206D1 Metric Two Bolt Oval Cast Iron Flange Housing with 30mm Bore Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
$52.98 ex VAT
$52.98 ex VAT
Sale Sold out

In stock

Price Break
3+ $39.47
4+ $37.88
9+ $37.08
19+ $35.88
49+ $35.09
99+ $33.09
499+ $27.91
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
NTN - High Quality
Inside Diameter:
30mm
Style:
UCFL
Bolt Hole Centres:
117mm
Technical
--- Dimensions
Shaft diameter 30mm
H 148mm
J 117mm
A<sub>2</sub> 18mm
A<sub>1</sub> 13mm
A 31mm
N 16mm
L 80mm
B 38.1mm
S 15.9mm
A<sub>4</sub> 49mm
Fixing bolt M14
--- Load rating
Dynamic load C<sub>r</sub> 21.6 kN
Static load C<sub>0r</sub> 11.3 kN
Fatigue load limit C<sub>u</sub> 0.795 kN
--- Unit information
Mass 9 kg
