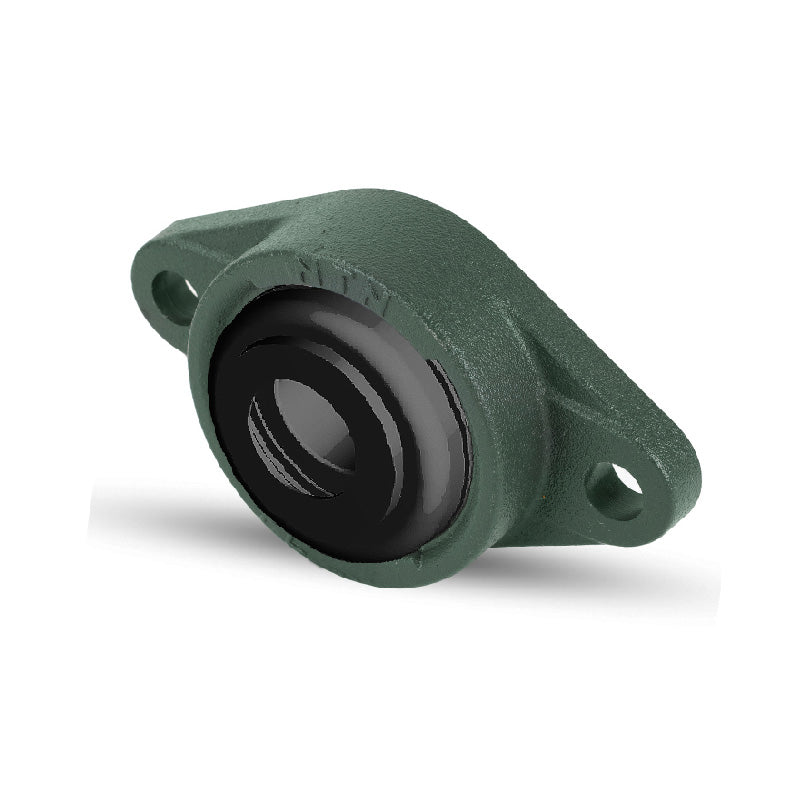

• NTN S-UCFL208D1 Metric Two Bolt Oval Cast Iron Flange Housing with 40mm Bore Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
1 1

SKU: S-UCFL208D1-NTN

NTN S-UCFL208D1 Metric Two Bolt Oval Cast Iron Flange Housing with 40mm Bore Insert with Steel Plate Cover - Open Version - Allow 2-3 Days

NTN S-UCFL208D1 Metric Two Bolt Oval Cast Iron Flange Housing with 40mm Bore Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
$73.59 ex VAT
$73.59 ex VAT
Sale Sold out

In stock

Price Break
3+ $54.83
4+ $52.61
9+ $51.50
19+ $49.84
49+ $48.73
99+ $45.97
499+ $38.77
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
NTN - High Quality
Inside Diameter:
40mm
Style:
UCFL
Bolt Hole Centres:
144mm
Technical
--- Dimensions
Shaft diameter 40mm
H 175mm
J 144mm
A<sub>2</sub> 21mm
A<sub>1</sub> 15mm
A 36mm
N 16mm
L 100mm
B 49.2mm
S 19mm
A<sub>4</sub> 62mm
Fixing bolt M14
--- Load rating
Dynamic load C<sub>r</sub> 32.5 kN
Static load C<sub>0r</sub> 17.8 kN
Fatigue load limit C<sub>u</sub> 1.24 kN
--- Unit information
Mass 1.5 kg
