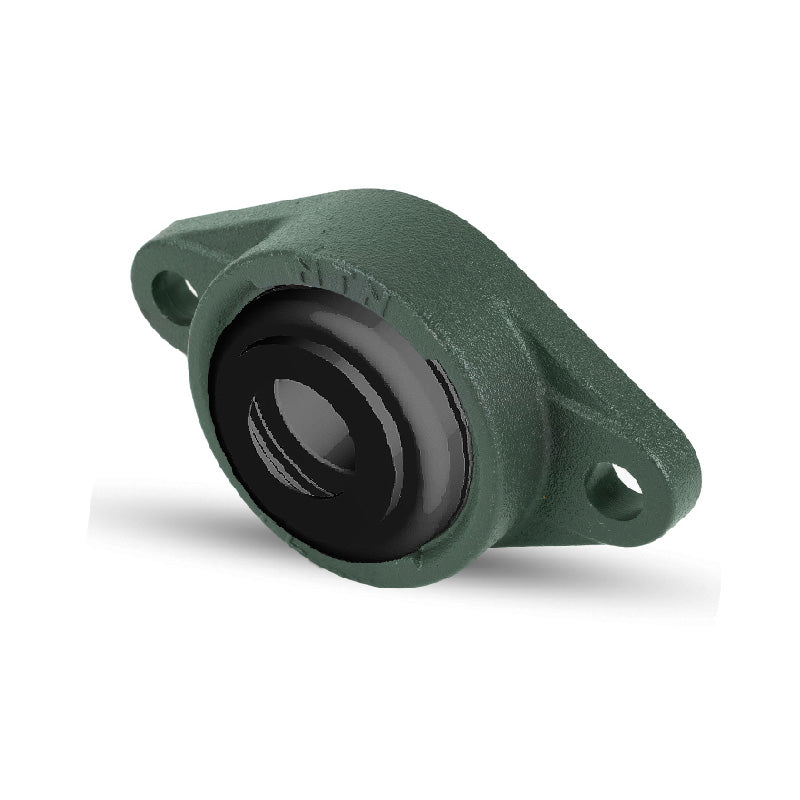

• NTN S-UCFL212D1 Metric Two Bolt Oval Cast Iron Flange Housing with 60mm Bore Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
1 1

SKU: S-UCFL212D1-NTN

NTN S-UCFL212D1 Metric Two Bolt Oval Cast Iron Flange Housing with 60mm Bore Insert with Steel Plate Cover - Open Version - Allow 2-3 Days

NTN S-UCFL212D1 Metric Two Bolt Oval Cast Iron Flange Housing with 60mm Bore Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
$147.28 ex VAT
$147.28 ex VAT
Sale Sold out

In stock

Price Break
3+ $109.72
4+ $105.29
9+ $103.07
19+ $99.75
49+ $97.53
99+ $91.99
499+ $77.58
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
NTN - High Quality
Inside Diameter:
60mm
Style:
UCFL
Bolt Hole Centres:
202mm
Technical
--- Dimensions
Shaft diameter 60mm
H 250mm
J 202mm
A<sub>2</sub> 29mm
A<sub>1</sub> 18mm
A 48mm
N 23mm
L 140mm
B 65.1mm
S 25.4mm
A<sub>4</sub> 80mm
Fixing bolt M20
--- Load rating
Dynamic load C<sub>r</sub> 58 kN
Static load C<sub>0r</sub> 36 kN
Fatigue load limit C<sub>u</sub> 2.83 kN
--- Unit information
Mass 4 kg
