SKU: S-UCFLX07-105D1-NTN

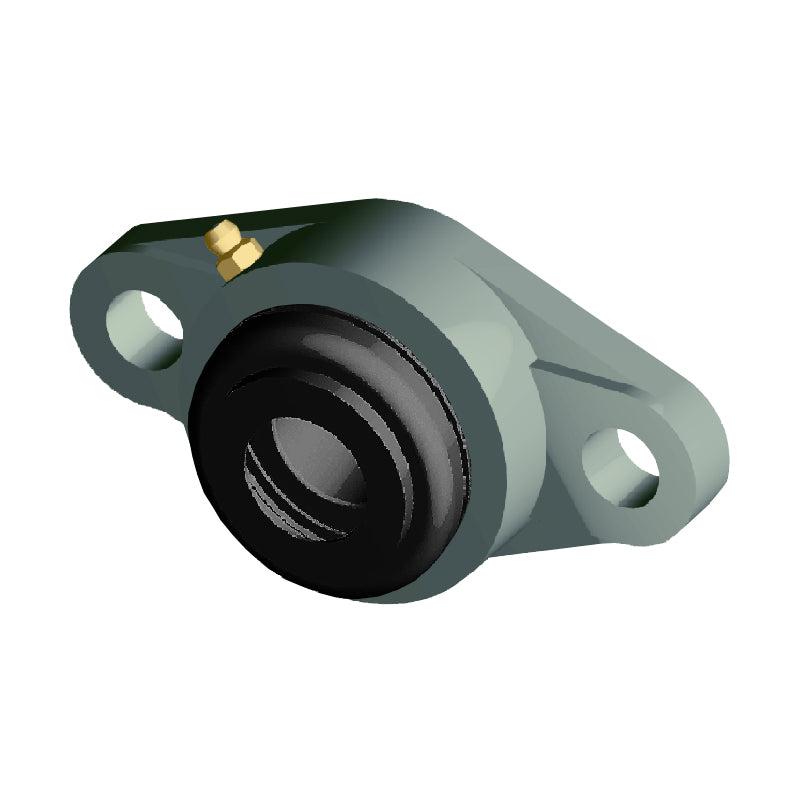

NTN S-UCFLX07-105D1 Imperial Two Bolt Oval Cast Iron Flange Housing with 1-5/16 inch Bore Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
NTN S-UCFLX07-105D1 Imperial Two Bolt Oval Cast Iron Flange Housing with 1-5/16 inch Bore Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
Out of stock
Description
Description
|
UCFLX or MSFT Series Medium Duty 2 Bolt Oval Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted.
The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 33.33mm = 1.312 (1-5/16) inch
- Style:
- UCFLX
- Bolt Hole Centres:
- 5-43/64 inch
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 1-5/16 inch |
| H | 6-23/32 inch |
| J | 5-43/64 inch |
| A<sub>2</sub> | 53/64 inch |
| A<sub>1</sub> | 5/8 inch |
| A | 1-1/2 inch |
| N | 5/8 inch |
| L | 4-1/8 inch |
| B | 1.937 inch |
| S | 0.748 inch |
| A<sub>4</sub> | 2-7/16 inch |
| Fixing bolt | 1/2 inch |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 32.5 kN |
| Static load C<sub>0r</sub> | 17.8 kN |
| Fatigue load limit C<sub>u</sub> | 1.24 kN |
| --- | Unit information |
| Mass | 4.2 lbs |
