SKU: S-UCP201-008D1-NTN

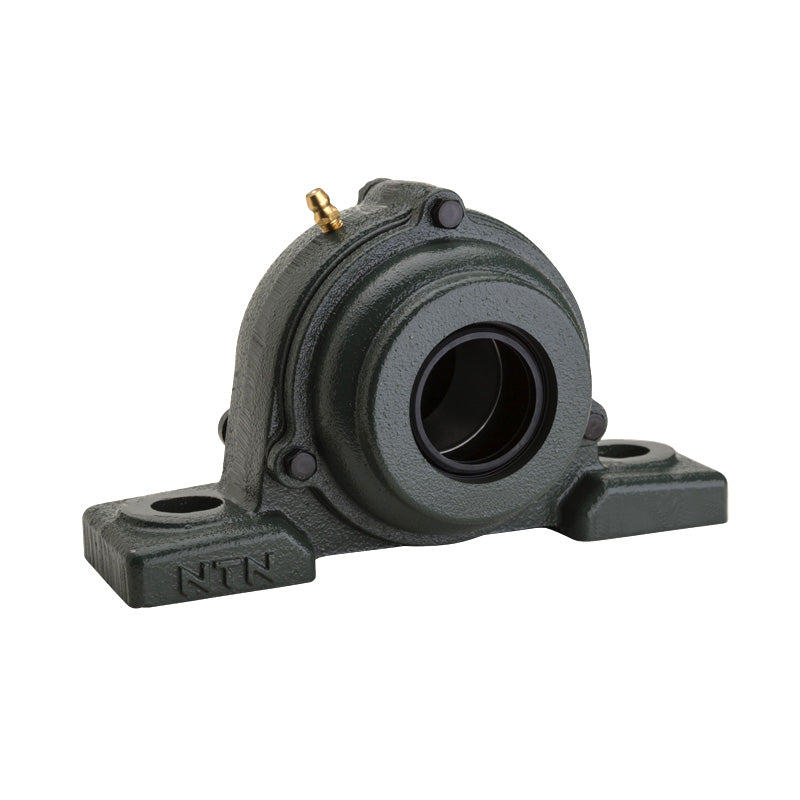

NTN S-UCP201-008D1 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1/2 inch Bore Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
NTN S-UCP201-008D1 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1/2 inch Bore Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
Out of stock
Description
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 12.7mm = 0.5 (1/2) inch
- Style:
- UCP
- Bolt Hole Centres:
- 3-3/4 inch
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 1/2 inch |
| H | 1-3/16 inch |
| L | 5 inch |
| J | 3-3/4 inch |
| A | 1-1/2 inch |
| N | 1/2 inch |
| N<sub>1</sub> | 5/8 inch |
| H<sub>1</sub> | 9/16 inch |
| H<sub>2</sub> | 2-7/16 inch |
| L<sub>1</sub> | 1-21/32 inch |
| B | 1.2205 inch |
| S | 0.5 inch |
| A<sub>4</sub> | 2 inch |
| Fixing bolt | 3/8 inch |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 14.2 kN |
| Static load C<sub>0r</sub> | 6.65 kN |
| Fatigue load limit C<sub>u</sub> | 0.505 kN |
| --- | Unit information |
| Mass | 1.5 lbs |
