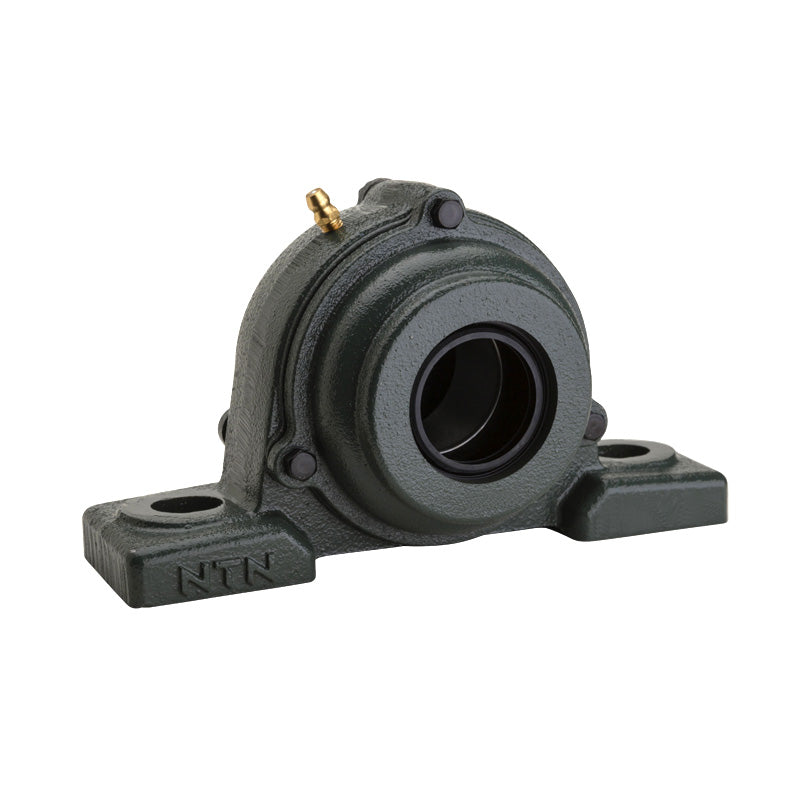

• NTN S-UCP204D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 20mm Bore Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
1 1

SKU: S-UCP204D1-NTN

NTN S-UCP204D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 20mm Bore Insert with Steel Plate Cover - Open Version - Allow 2-3 Days

NTN S-UCP204D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 20mm Bore Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
$41.22 ex VAT
$41.22 ex VAT
Sale Sold out

In stock

Price Break
3+ $30.71
4+ $29.47
9+ $28.85
19+ $27.92
49+ $27.30
99+ $25.75
499+ $21.71
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
NTN - High Quality
Inside Diameter:
20mm
Style:
UCP
Bolt Hole Centres:
95mm
Technical
--- Dimensions
Shaft diameter 20mm
H 33.3mm
L 127mm
J 95mm
A 38mm
N 13mm
N<sub>1</sub> 16mm
H<sub>1</sub> 14mm
H<sub>2</sub> 65mm
L<sub>1</sub> 42mm
B 31mm
S 12.7mm
A<sub>4</sub> 51mm
Fixing bolt M10
--- Load rating
Dynamic load C<sub>r</sub> 14.2 kN
Static load C<sub>0r</sub> 6.65 kN
Fatigue load limit C<sub>u</sub> 0.505 kN
--- Unit information
Mass 0.7 kg
