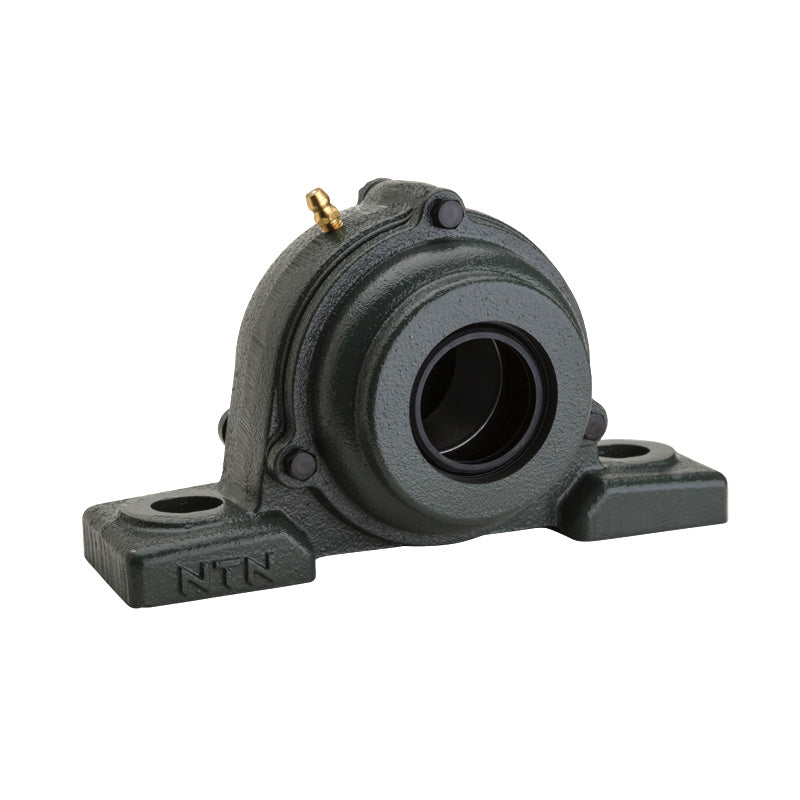

• NTN S-UCP206D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 30mm Bore Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
  • NTN
1 2

SKU: S-UCP206D1-NTN

NTN S-UCP206D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 30mm Bore Insert with Steel Plate Cover - Open Version - Allow 2-3 Days

NTN S-UCP206D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 30mm Bore Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
$50.13 ex VAT
$50.13 ex VAT
Sale Sold out

In stock

Price Break
3+ $33.58
4+ $31.69
9+ $31.32
19+ $30.94
49+ $30.56
99+ $30.18
499+ $28.30
999+ $27.92
1999+ $27.54
2999+ $27.17
4999+ $26.41

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
30mm
Style:
UCP
Bolt Hole Centres:
121mm
Technical
--- Dimensions
Shaft diameter 30mm
H 42.9mm
L 165mm
J 121mm
A 48mm
N 17mm
N<sub>1</sub> 20mm
H<sub>1</sub> 17mm
H<sub>2</sub> 83mm
L<sub>1</sub> 54mm
B 38.1mm
S 15.9mm
A<sub>4</sub> 62mm
Fixing bolt M14
--- Load rating
Dynamic load C<sub>r</sub> 21.6 kN
Static load C<sub>0r</sub> 11.3 kN
Fatigue load limit C<sub>u</sub> 0.795 kN
--- Unit information
Mass 1.4 kg
