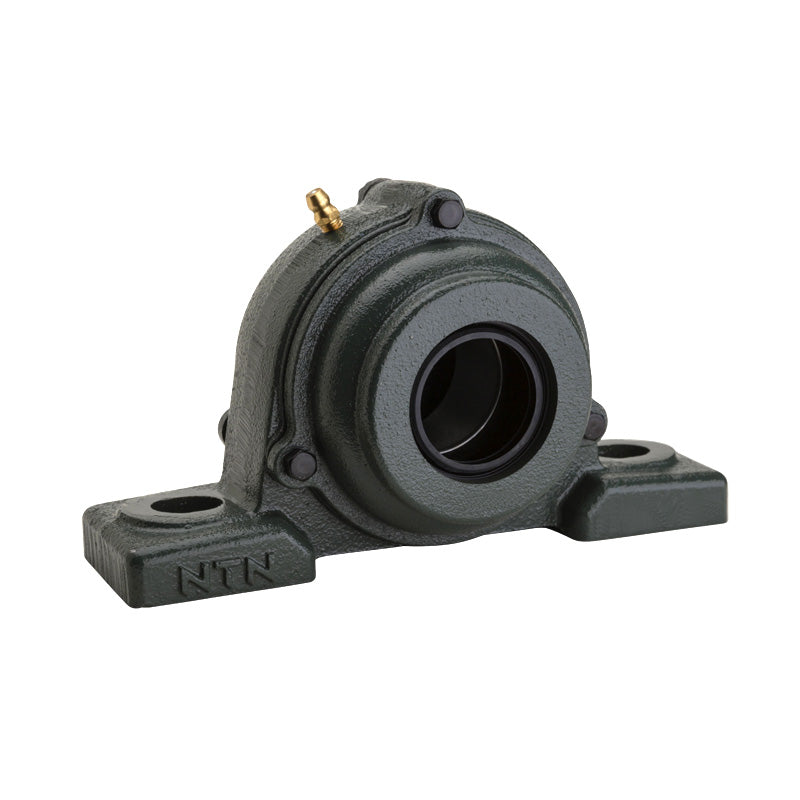

• NTN S-UCP207D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 35mm Bore Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
1 1

SKU: S-UCP207D1-NTN

NTN S-UCP207D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 35mm Bore Insert with Steel Plate Cover - Open Version - Allow 2-3 Days

NTN S-UCP207D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 35mm Bore Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
$73.53 ex VAT
$73.53 ex VAT
Sale Sold out

In stock

Price Break
3+ $54.78
4+ $52.56
9+ $51.46
19+ $49.80
49+ $48.69
99+ $45.92
499+ $38.73
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
NTN - High Quality
Inside Diameter:
35mm
Style:
UCP
Bolt Hole Centres:
127mm
Technical
--- Dimensions
Shaft diameter 35mm
H 47.6mm
L 167mm
J 127mm
A 48mm
N 17mm
N<sub>1</sub> 20mm
H<sub>1</sub> 18mm
H<sub>2</sub> 93mm
L<sub>1</sub> 54mm
B 42.9mm
S 17.5mm
A<sub>4</sub> 72mm
Fixing bolt M14
--- Load rating
Dynamic load C<sub>r</sub> 28.4 kN
Static load C<sub>0r</sub> 15.3 kN
Fatigue load limit C<sub>u</sub> 1.09 kN
--- Unit information
Mass 1.7 kg
