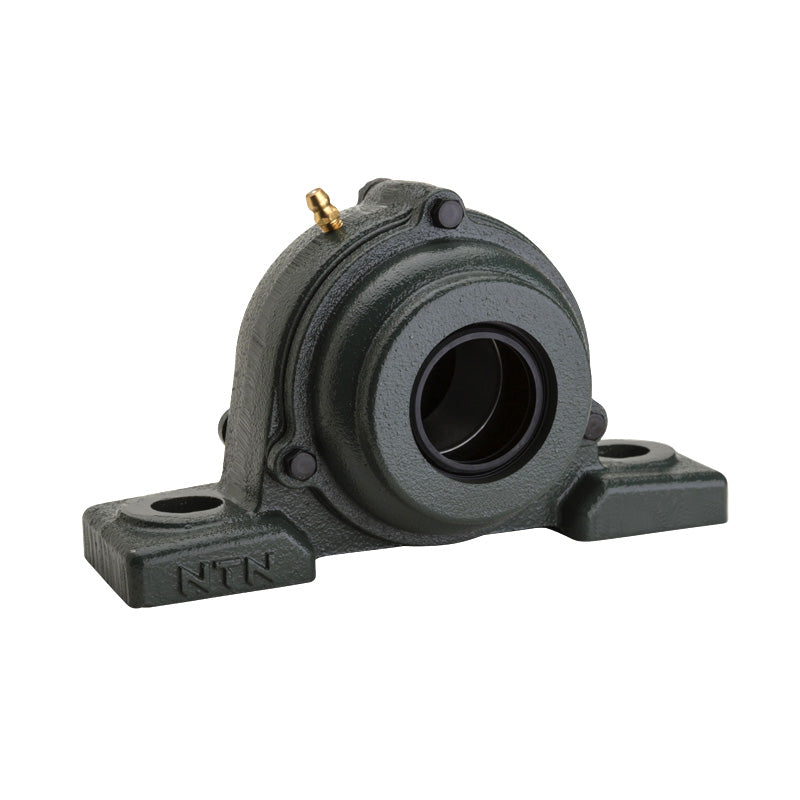

• NTN S-UCP208D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 40mm Bore Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
1 1

SKU: S-UCP208D1-NTN

NTN S-UCP208D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 40mm Bore Insert with Steel Plate Cover - Open Version - Allow 2-3 Days

NTN S-UCP208D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 40mm Bore Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
$73.63 ex VAT
$73.63 ex VAT
Sale Sold out

In stock

Price Break
3+ $54.86
4+ $52.64
9+ $51.53
19+ $49.87
49+ $48.76
99+ $45.99
499+ $38.79
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
NTN - High Quality
Inside Diameter:
40mm
Style:
UCP
Bolt Hole Centres:
137mm
Technical
--- Dimensions
Shaft diameter 40mm
H 49.2mm
L 184mm
J 137mm
A 54mm
N 17mm
N<sub>1</sub> 20mm
H<sub>1</sub> 18mm
H<sub>2</sub> 98mm
L<sub>1</sub> 52mm
B 49.2mm
S 19mm
A<sub>4</sub> 82mm
Fixing bolt M14
--- Load rating
Dynamic load C<sub>r</sub> 32.5 kN
Static load C<sub>0r</sub> 17.8 kN
Fatigue load limit C<sub>u</sub> 1.24 kN
--- Unit information
Mass 2.1 kg
