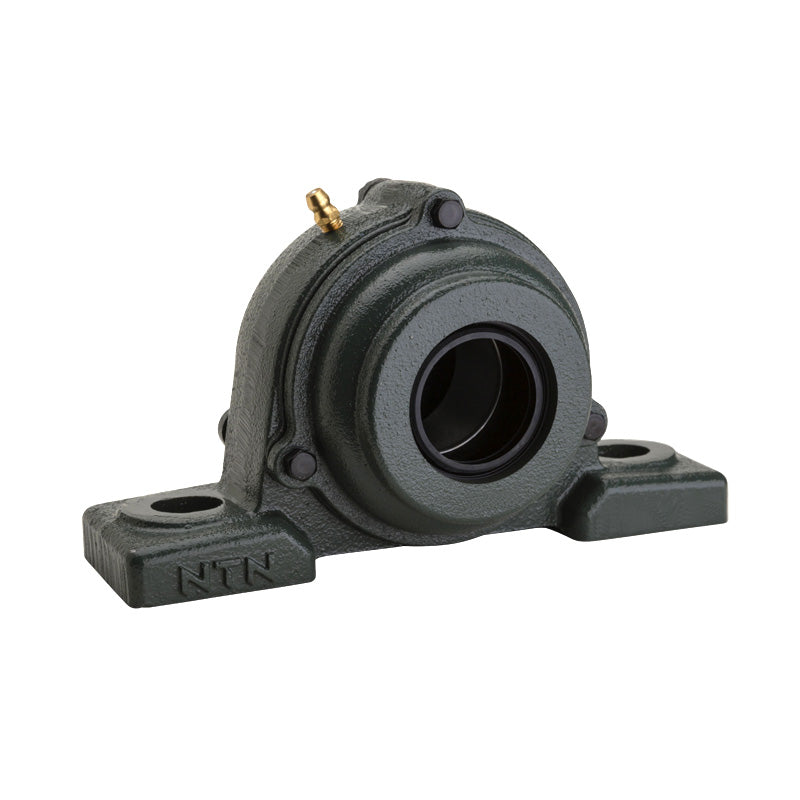

• NTN S-UCP209D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 45mm Bore Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
1 1

SKU: S-UCP209D1-NTN

NTN S-UCP209D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 45mm Bore Insert with Steel Plate Cover - Open Version - Allow 2-3 Days

NTN S-UCP209D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 45mm Bore Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
$88.32 ex VAT
$88.32 ex VAT
Sale Sold out

In stock

Price Break
3+ $65.80
4+ $63.14
9+ $61.81
19+ $59.81
49+ $58.48
99+ $55.16
499+ $46.52
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
NTN - High Quality
Inside Diameter:
45mm
Style:
UCP
Bolt Hole Centres:
146mm
Technical
--- Dimensions
Shaft diameter 45mm
H 54mm
L 190mm
J 146mm
A 54mm
N 17mm
N<sub>1</sub> 20mm
H<sub>1</sub> 20mm
H<sub>2</sub> 106mm
L<sub>1</sub> 60mm
B 49.2mm
S 19mm
A<sub>4</sub> 82mm
Fixing bolt M14
--- Load rating
Dynamic load C<sub>r</sub> 36 kN
Static load C<sub>0r</sub> 20.4 kN
Fatigue load limit C<sub>u</sub> 1.6 kN
--- Unit information
Mass 2.4 kg
