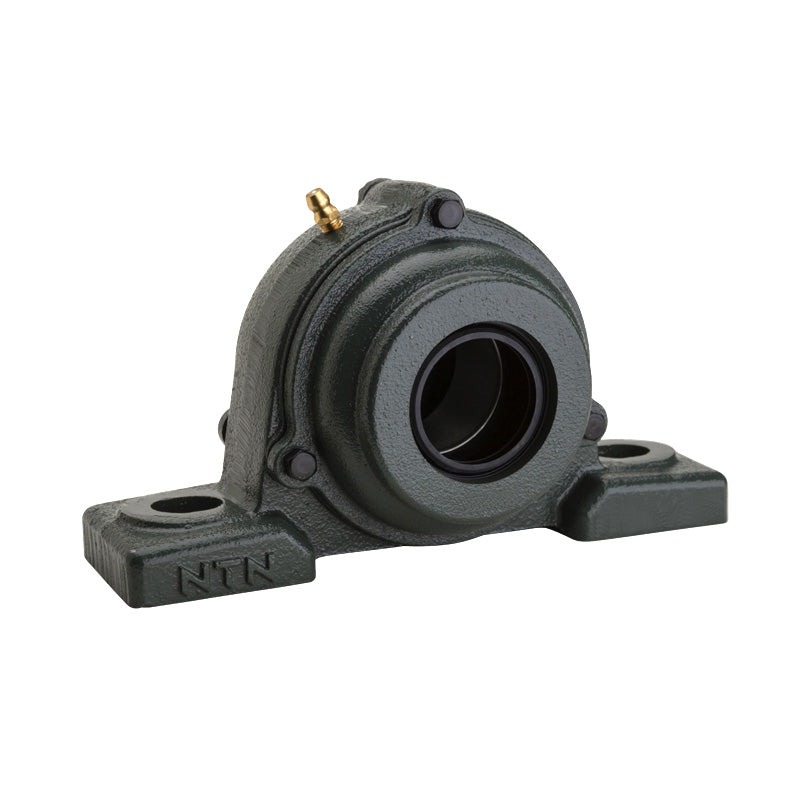

• NTN S-UCP211D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Bore Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
1 1

SKU: S-UCP211D1-NTN

NTN S-UCP211D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Bore Insert with Steel Plate Cover - Open Version - Allow 2-3 Days

NTN S-UCP211D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Bore Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
$132.50 ex VAT
$132.50 ex VAT
Sale Sold out

In stock

Price Break
3+ $98.71
4+ $94.72
9+ $92.73
19+ $89.74
49+ $87.74
99+ $82.76
499+ $69.80
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
NTN - High Quality
Inside Diameter:
55mm
Style:
UCP
Bolt Hole Centres:
171mm
Technical
--- Dimensions
Shaft diameter 55mm
H 63.5mm
L 219mm
J 171mm
A 60mm
N 20mm
N<sub>1</sub> 23mm
H<sub>1</sub> 23mm
H<sub>2</sub> 126mm
L<sub>1</sub> 65mm
B 55.6mm
S 22.2mm
A<sub>4</sub> 92mm
Fixing bolt M16
--- Load rating
Dynamic load C<sub>r</sub> 48 kN
Static load C<sub>0r</sub> 29.2 kN
Fatigue load limit C<sub>u</sub> 2.29 kN
--- Unit information
Mass 3.6 kg
