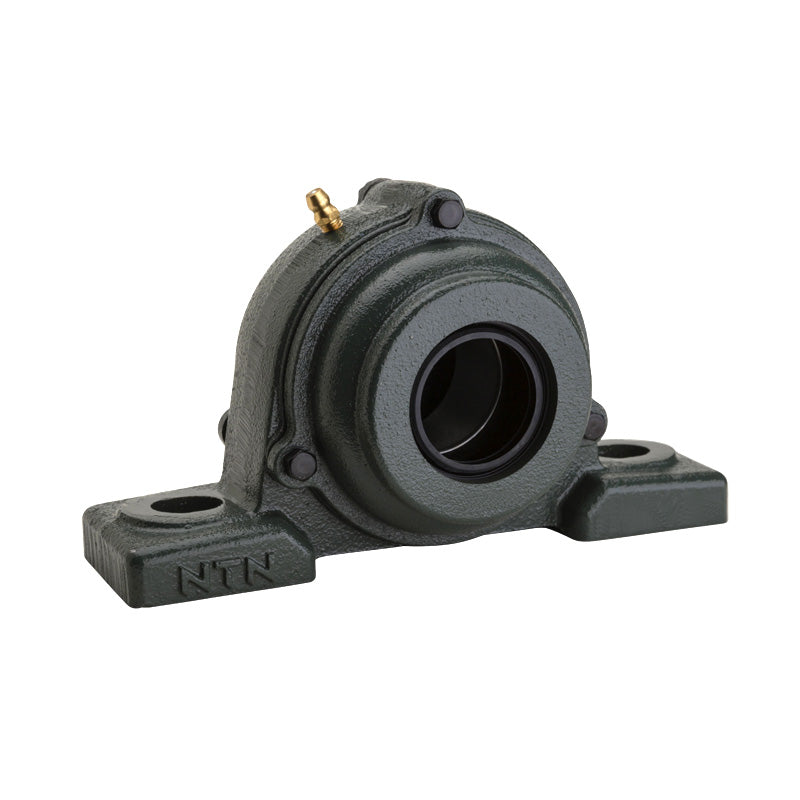

• NTN S-UCP213D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 65mm Bore Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
1 1

SKU: S-UCP213D1-NTN

NTN S-UCP213D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 65mm Bore Insert with Steel Plate Cover - Open Version - Allow 2-3 Days

NTN S-UCP213D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 65mm Bore Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
$206.01 ex VAT
$206.01 ex VAT
Sale Sold out

In stock

Price Break
3+ $153.47
4+ $147.27
9+ $144.17
19+ $139.52
49+ $136.42
99+ $128.67
499+ $108.51
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
NTN - High Quality
Inside Diameter:
65mm
Style:
UCP
Bolt Hole Centres:
203mm
Technical
--- Dimensions
Shaft diameter 65mm
H 76.2mm
L 265mm
J 203mm
A 70mm
N 25mm
N<sub>1</sub> 28mm
H<sub>1</sub> 27mm
H<sub>2</sub> 151mm
L<sub>1</sub> 77mm
B 65.1mm
S 25.4mm
A<sub>4</sub> 107mm
Fixing bolt M20
--- Load rating
Dynamic load C<sub>r</sub> 63.5 kN
Static load C<sub>0r</sub> 40 kN
Fatigue load limit C<sub>u</sub> 3.15 kN
--- Unit information
Mass 5.8 kg
