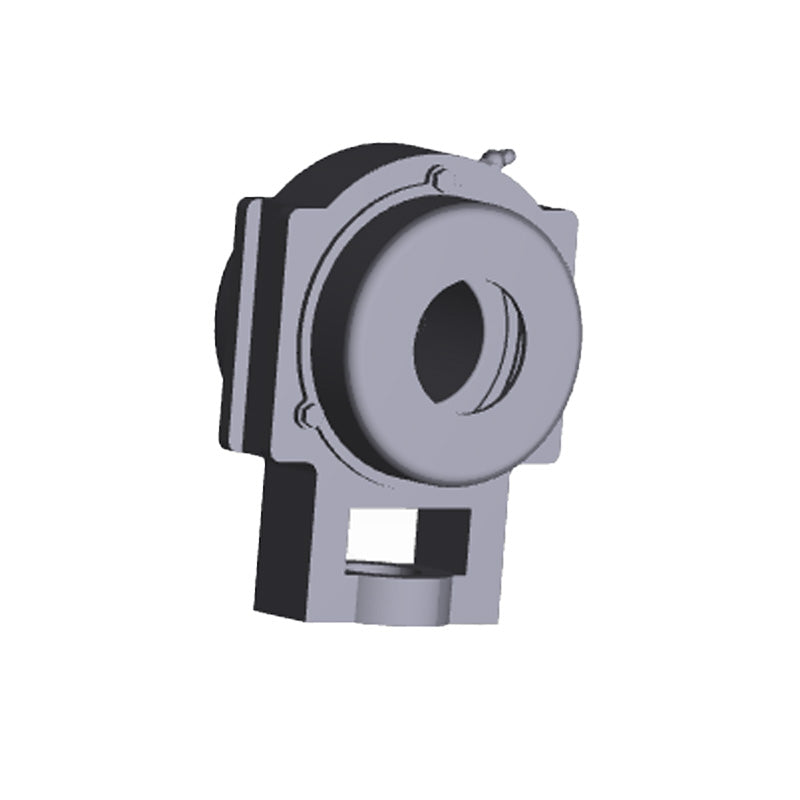

• NTN S-UCT206D1 Metric Cast Iron Take Up Unit with 30mm Bore Bearing Unit with Steel Plate Cover - Open Version - Allow 2-3 Days
1 1

SKU: S-UCT206D1-NTN

NTN S-UCT206D1 Metric Cast Iron Take Up Unit with 30mm Bore Bearing Unit with Steel Plate Cover - Open Version - Allow 2-3 Days

NTN S-UCT206D1 Metric Cast Iron Take Up Unit with 30mm Bore Bearing Unit with Steel Plate Cover - Open Version - Allow 2-3 Days
$58.87 ex VAT
$58.87 ex VAT
Sale Sold out

In stock

Price Break
3+ $43.86
4+ $42.09
9+ $41.20
19+ $39.87
49+ $38.98
99+ $36.77
499+ $31.01
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCT or ST Series Take Up Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the slotted take up housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
NTN - High Quality
Inside Diameter:
30mm
Style:
UCT
Technical
--- Dimensions
Shaft diameter 30mm
N<sub>1</sub> 16mm
L<sub>2</sub> 12mm
H<sub>2</sub> 56mm
N<sub>2</sub> 37mm
N 22mm
L<sub>3</sub> 57mm
A<sub>1</sub> 12mm
H<sub>1</sub> 89mm
H 102mm
L 113mm
A<sub>2</sub> 28mm
A 37mm
r 43mm
L<sub>1</sub> 70mm
B 38.1mm
S 15.9mm
A<sub>4</sub> 62mm
--- Load rating
Dynamic load C<sub>r</sub> 21.6 kN
Static load C<sub>0r</sub> 11.3 kN
Fatigue load limit C<sub>u</sub> 0.795 kN
--- Unit information
Mass 1.3 kg
