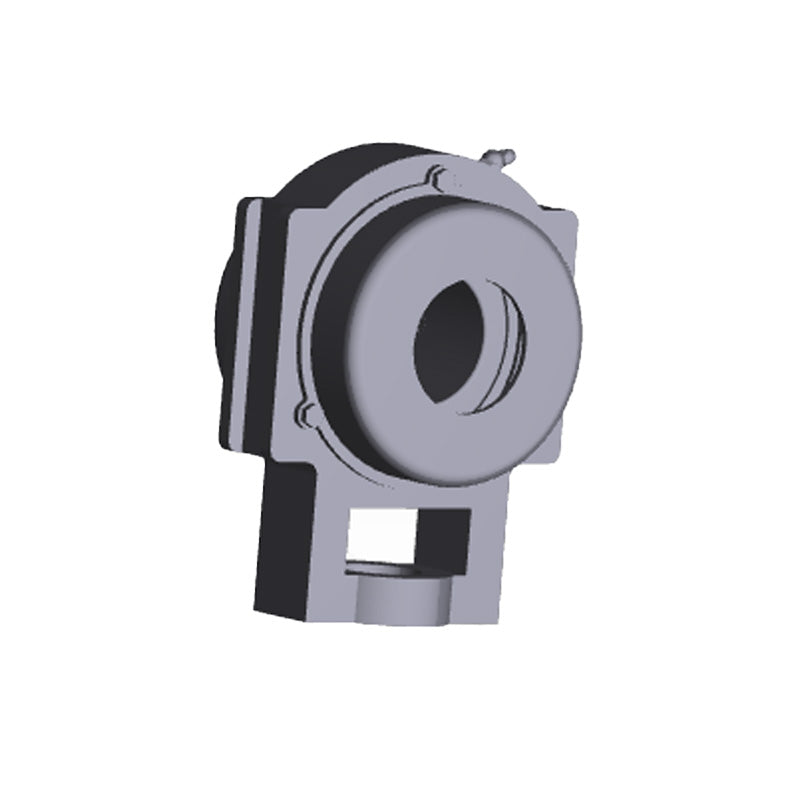

• NTN S-UCT208D1 Metric Cast Iron Take Up Unit with 40mm Bore Bearing Unit with Steel Plate Cover - Open Version - Allow 2-3 Days
1 1

SKU: S-UCT208D1-NTN

NTN S-UCT208D1 Metric Cast Iron Take Up Unit with 40mm Bore Bearing Unit with Steel Plate Cover - Open Version - Allow 2-3 Days

NTN S-UCT208D1 Metric Cast Iron Take Up Unit with 40mm Bore Bearing Unit with Steel Plate Cover - Open Version - Allow 2-3 Days
$88.29 ex VAT
$88.29 ex VAT
Sale Sold out

In stock

Price Break
3+ $65.78
4+ $63.12
9+ $61.79
19+ $59.80
49+ $58.47
99+ $55.15
499+ $46.51
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCT or ST Series Take Up Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the slotted take up housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
NTN - High Quality
Inside Diameter:
40mm
Style:
UCT
Technical

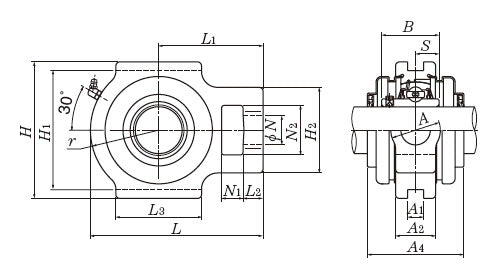

--- Dimensions
Shaft diameter 40mm
N<sub>1</sub> 19mm
L<sub>2</sub> 18mm
H<sub>2</sub> 83mm
N<sub>2</sub> 49mm
N 29mm
L<sub>3</sub> 83mm
A<sub>1</sub> 16mm
H<sub>1</sub> 102mm
H 114mm
L 144mm
A<sub>2</sub> 33mm
A 49mm
r 56mm
L<sub>1</sub> 88mm
B 49.2mm
S 19mm
A<sub>4</sub> 82mm
--- Load rating
Dynamic load C<sub>r</sub> 32.5 kN
Static load C<sub>0r</sub> 17.8 kN
Fatigue load limit C<sub>u</sub> 1.24 kN
--- Unit information
Mass 2.5 kg
