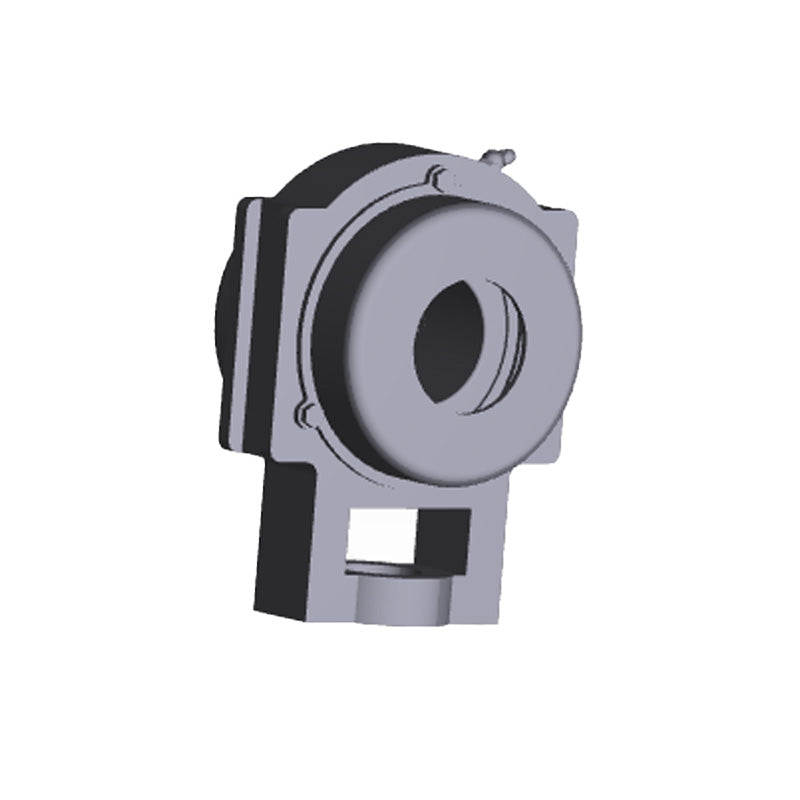

• NTN S-UCT210D1 Metric Cast Iron Take Up Unit with 50mm Bore Bearing Unit with Steel Plate Cover - Open Version - Allow 2-3 Days
1 1

SKU: S-UCT210D1-NTN

NTN S-UCT210D1 Metric Cast Iron Take Up Unit with 50mm Bore Bearing Unit with Steel Plate Cover - Open Version - Allow 2-3 Days

NTN S-UCT210D1 Metric Cast Iron Take Up Unit with 50mm Bore Bearing Unit with Steel Plate Cover - Open Version - Allow 2-3 Days
$103.10 ex VAT
$103.10 ex VAT
Sale Sold out

In stock

Price Break
3+ $76.80
4+ $73.70
9+ $72.15
19+ $69.82
49+ $68.27
99+ $64.39
499+ $54.31
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCT or ST Series Take Up Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the slotted take up housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
NTN - High Quality
Inside Diameter:
50mm
Style:
UCT
Technical
--- Dimensions
Shaft diameter 50mm
N<sub>1</sub> 19mm
L<sub>2</sub> 18mm
H<sub>2</sub> 83mm
N<sub>2</sub> 49mm
N 29mm
L<sub>3</sub> 86mm
A<sub>1</sub> 16mm
H<sub>1</sub> 102mm
H 117mm
L 151mm
A<sub>2</sub> 37mm
A 49mm
r 59mm
L<sub>1</sub> 92mm
B 51.6mm
S 19mm
A<sub>4</sub> 87mm
--- Load rating
Dynamic load C<sub>r</sub> 39 kN
Static load C<sub>0r</sub> 23.2 kN
Fatigue load limit C<sub>u</sub> 1.82 kN
--- Unit information
Mass 2.7 kg
