SKU: S7009ACDGA/P4A-SKF

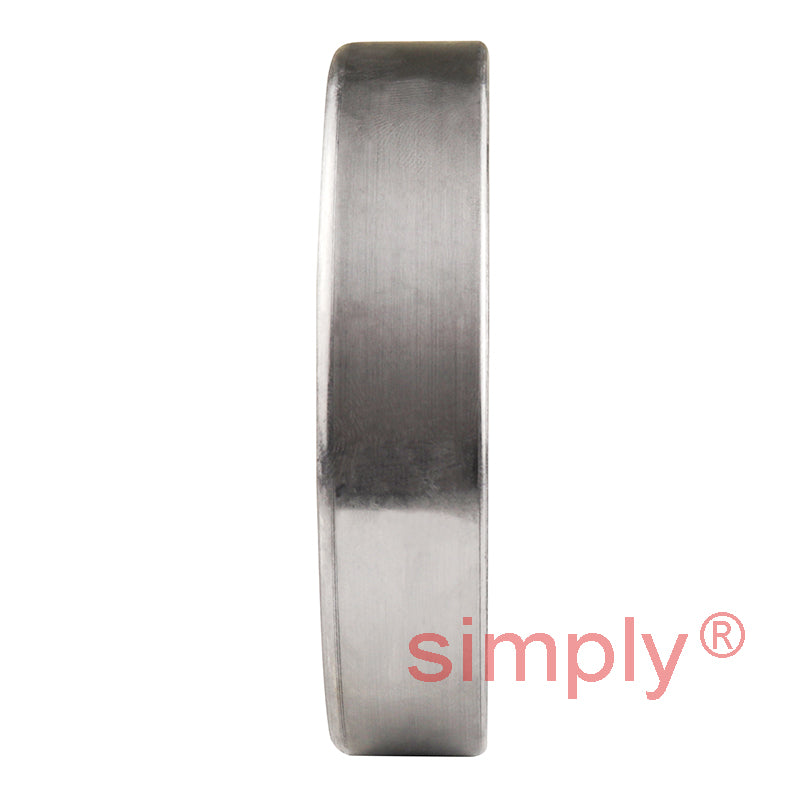

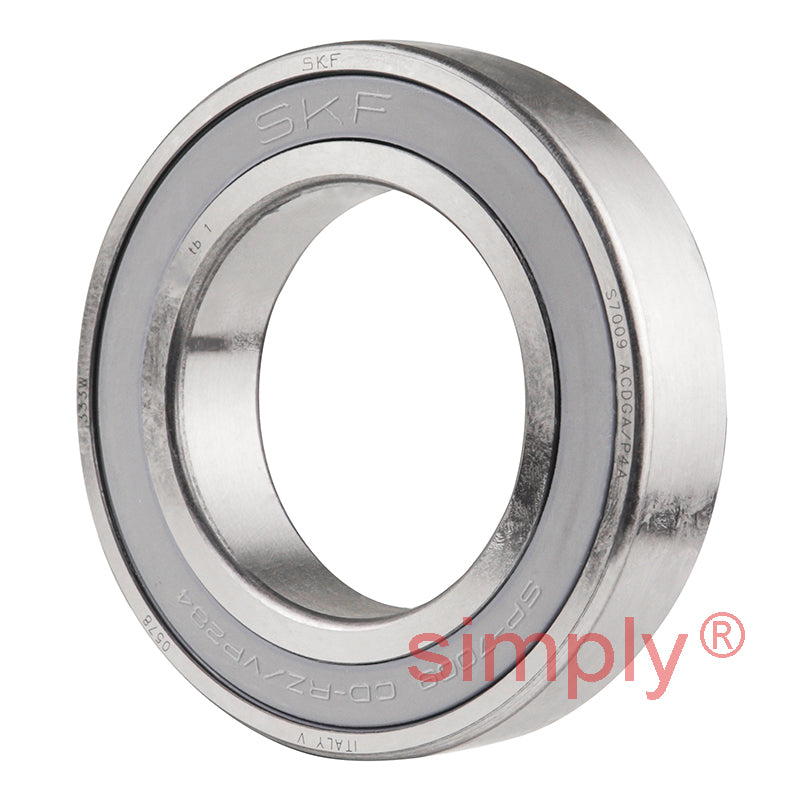

SKF S7009ACDGA/P4A Super Precision Sealed Angular Contact Spindle Bearing 45x75x16mm
SKF S7009ACDGA/P4A Super Precision Sealed Angular Contact Spindle Bearing 45x75x16mm
Regular price
$296.74
ex VAT
Regular price
Sale price
$296.74
ex VAT
In stock
Price Break
3+
$198.76
5+
$187.60
10+
$185.36
25+
$183.13
49+
$180.90
74+
$178.66
99+
$167.50
199+
$165.26
249+
$163.03
499+
$160.80
999+
$156.33
Quantity
Couldn't load pickup availability
Description
Description
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 75mm
- Width:
- 16mm
- Seals / Shields:
- Rubber Sealed
- Style:
- Single Universal Matchable Bearing
- Contact Angle:
- 25 Degree contact angle
Technical
Technical
| d | 45mm |
|---|---|
| D | 75mm |
| B | 16mm |
| C | 27.6kN |
| Co | 21.6kN |
| Pu | 0.9kN |
| rpm in grease | 28000kN |
| rpm in grease | 28000 |
| rpm in oil-air | 43000 |
| d1 | 54.2mm |
| d2 | 54.2mm |
| D1 | mm |
| D2 | 68.3mm |
| r1 & r2 min | 1mm |
| r3 & r4 min | 0.3mm |
| da min | 49.6mm |
| db min | 49.6mm |
| Da max | 70.4mm |
| Db max | 73mm |
| ra max | 1mm |
| rb max | 0.3mm |
| dn | mm |
| Grease fill ref qty | cm<sup>3</sup> |
| Weight | 0.25kg |
