SKU: SA.205G

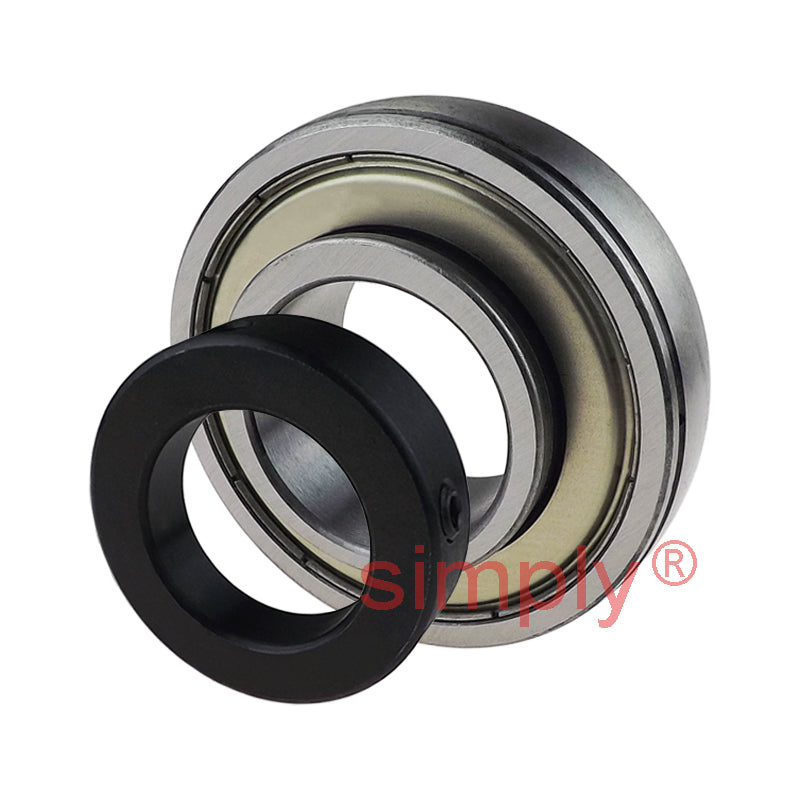

SA205G Metric Bearing Insert with Locking Collar 25mm Bore 52mm Outside Dia
SA205G Metric Bearing Insert with Locking Collar 25mm Bore 52mm Outside Dia
Regular price
$10.06
ex VAT
Regular price
Sale price
$10.06
ex VAT
In stock
Price Break
3+
$6.74
4+
$6.36
9+
$6.28
19+
$6.21
49+
$6.13
99+
$6.05
499+
$5.68
999+
$5.60
1999+
$5.52
2999+
$5.45
4999+
$5.30
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
SA or 12--ECG or RAE Series Eccentric Collar Type Insert: Sealed bearing insert with eccentric shaft locking collar and grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 52mm
- Style:
- SA
Technical
Technical
| d | 25mm |
|---|---|
| Be | 15mm |
| D | 52mm |
| z | 21.5mm |
| n | 7.5mm |
| m | 14mm |
| Bi | 31mm |
| k | 38.1mm |
| H | 13.5mm |
| G | 5mm |
| h | 3.9mm |
| Grub screw | M6X1.0 |
| Weight | 0.22 kg |
| Dynamic load | 1100 kgf |
| Static load | 710 kgf |
