SKU: SA17C-CDX

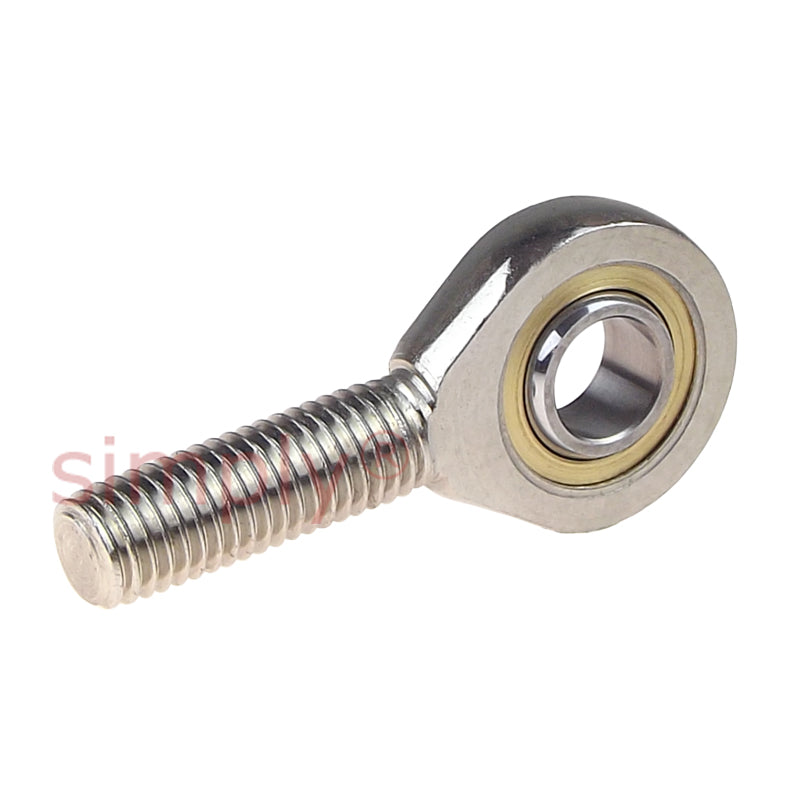

Codex SA17C Right Hand Steel / PTFE Sintered Bronze Lined Plain Male Rod End M16 Thread
- Regular price
- $31.41 ex VAT
- Sale price
- $31.41
- Regular price
-
In stock
Quantity Price Breaks
10
$27.95
19
$26.38
29
$26.07
39
$25.76
49
$25.44
74
$25.13
99
$23.56
199
$23.24
249
$22.93
499
$22.62
999
$21.99
SKU:
SA17C-CDX
Codex SA17C Right Hand Steel / PTFE Sintered Bronze Lined Plain Male Rod End M16 Thread
- Regular price
- $31.41 ex VAT
- Sale price
- $31.41
- Regular price
-
Description
|
SA..C Series Rod End Bearings: This series is classed as maintenance free rod end bearings. Comprising of sliding contact surfaces of steel against PTFE sintered bronze these rod end bearings are unsealed. They are manufactured from heat treatable C45V Steel zinc coated and chromatized and PTFE sintered bronze and will operate within -35deg C to +150 deg C, load carrying capacity will be reduced over +80 degrees C. Left and Right hand threaded versions are available an L in the part number denotes the left hand option. These are metric sized rod end bearings. Application: Suitable for heavy, constant direction loads, where low coefficient of friction is required; limited suitability for alternating loads, shock loads. Benefits: Maintenance free, Steel / PTFE /Bronze |

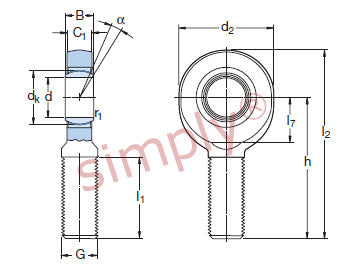

Technical
| d | = | 17mm |
| d2 max | = | 47mm |
| G | = | M16 |
| B | = | 14mm |
| C1 max | = | 11.5mm |
| h1 | = | 69mm |
| Max misalignment angle | = | 10 degrees |
| Dynamic load | = | 22.4 kN |
| Static load | = | 42.5 kN |
| dk | = | 25mm |
| l1 min | = | 36mm |
| l2 max | = | 94mm |
| l7 min | = | 22mm |
| r1 min | = | 0.3mm |
| Weight | = | 0.19 kg |
