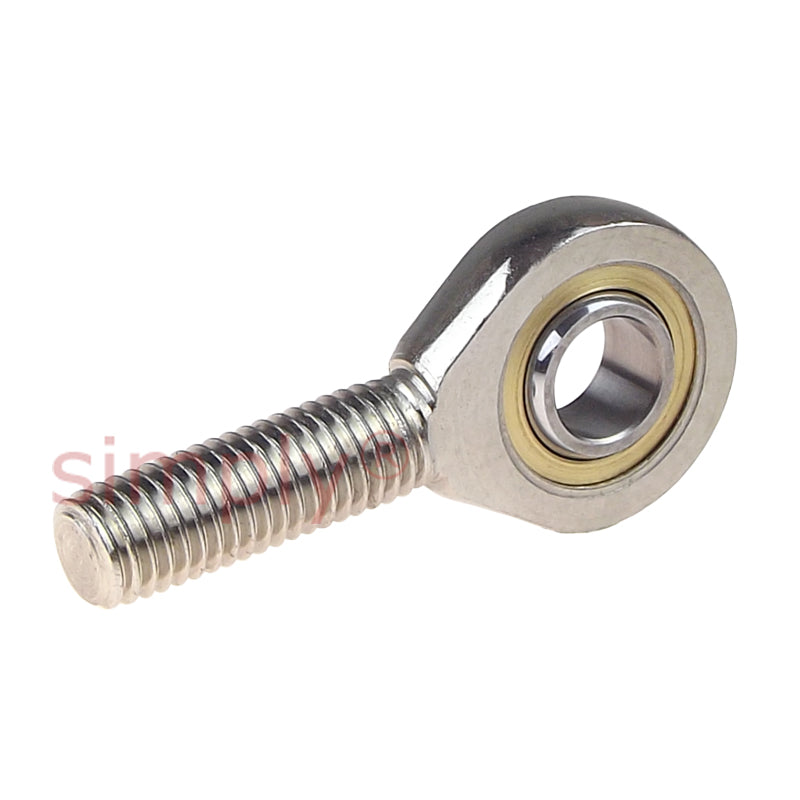

• Codex SA20C Right Hand Steel / PTFE Sintered Bronze Lined Plain Male Rod End M20x1.5 Thread
  • Codex
1 2

SKU: SA20C-CDX

Codex SA20C Right Hand Steel / PTFE Sintered Bronze Lined Plain Male Rod End M20x1.5 Thread

Codex SA20C Right Hand Steel / PTFE Sintered Bronze Lined Plain Male Rod End M20x1.5 Thread
$29.82 ex VAT
$29.82 ex VAT
Sale Sold out

Equivalent to: GAR20UK FE20U

In stock

Price Break
10+ $19.97
19+ $18.85
29+ $18.63
39+ $18.40
49+ $18.18
74+ $17.95
99+ $16.83
199+ $16.61
249+ $16.38
499+ $16.16
999+ $15.71

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Codex - Good Quality
Thread Size:
M20x1.5
Thread M / F:
Male
Thread Direction:
Right Hand
Inside Diameter:
20mm
Material:
PTFE Sintered Bronze Lined
Technical
d 20mm
d2 max 54mm
G M20x1.5
B 16mm
C1 max 13.5mm
h1 78mm
Max misalignment angle 9 degrees
Dynamic load 31.5 kN
Static load 51 kN
dk 29mm
l1 min 43mm
l2 max 107mm
l7 min 24mm
r1 min 0.3mm
Weight 0.32 kg
