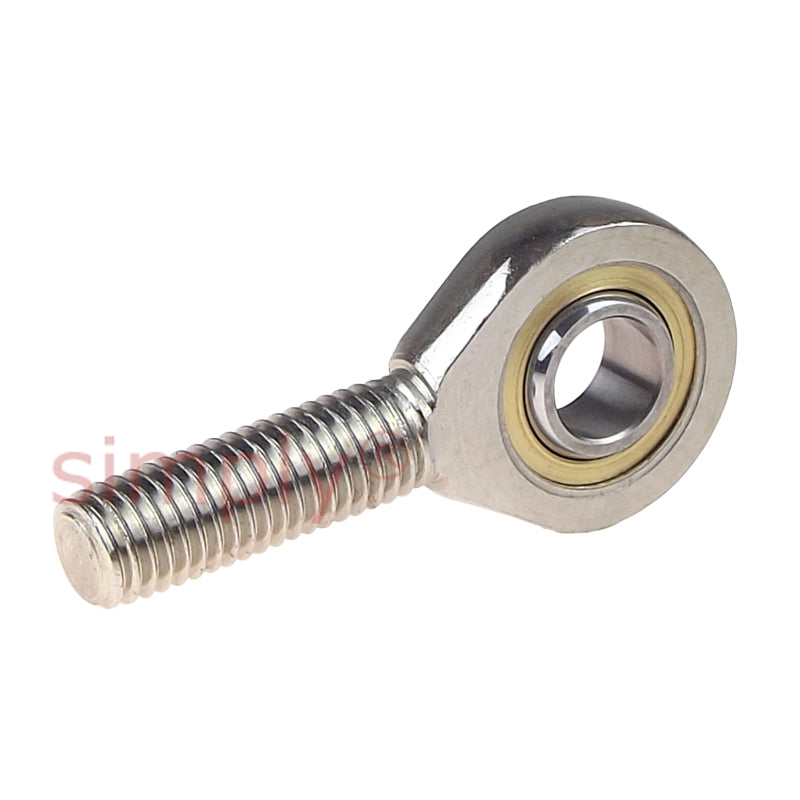

• Codex SA25C Right Hand Steel / PTFE Sintered Bronze Lined Plain Male Rod End M24x2 Thread
  • Codex
1 2

SKU: SA25C-CDX

Codex SA25C Right Hand Steel / PTFE Sintered Bronze Lined Plain Male Rod End M24x2 Thread

Codex SA25C Right Hand Steel / PTFE Sintered Bronze Lined Plain Male Rod End M24x2 Thread
$41.30 ex VAT
$41.30 ex VAT
Sale Sold out

Equivalent to: GAR25UK FE25U

In stock

Price Break
10+ $27.67
19+ $26.11
29+ $25.80
39+ $25.49
49+ $25.18
74+ $24.87
99+ $23.31
199+ $23.00
249+ $22.69
499+ $22.38
999+ $21.76

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Codex - Good Quality
Thread Size:
M24x2
Thread M / F:
Male
Thread Direction:
Right Hand
Inside Diameter:
25mm
Material:
PTFE Sintered Bronze Lined
Technical
d 25mm
d2 max 65mm
G M24x2
B 20mm
C1 max 18mm
h1 94mm
Max misalignment angle 7 degrees
Dynamic load 51 kN
Static load 78 kN
dk 35.5mm
l1 min 53mm
l2 max 128mm
l7 min 30mm
r1 min 0.6mm
Weight 0.57 kg
