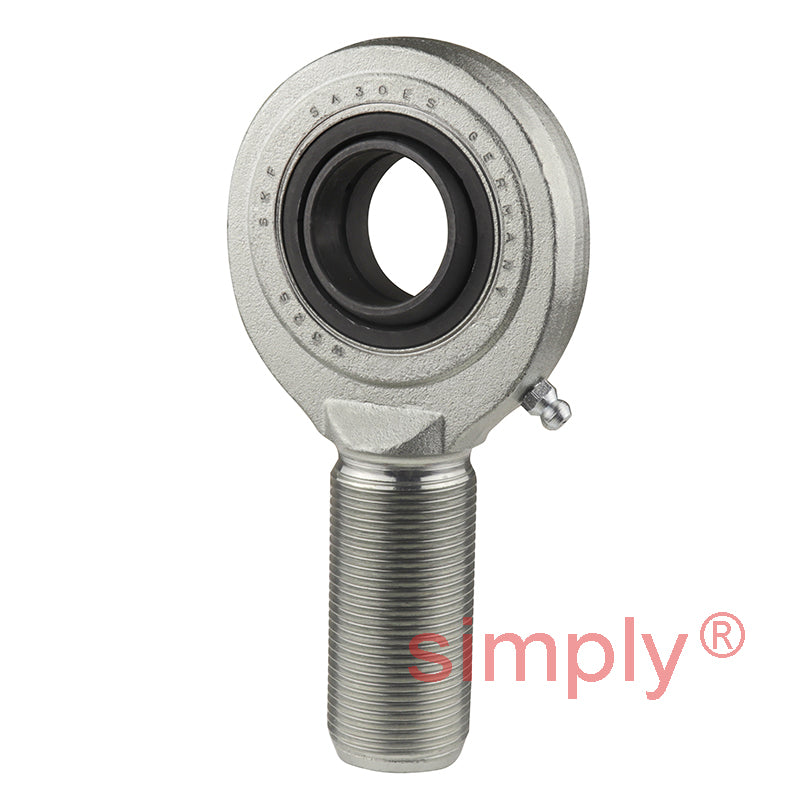

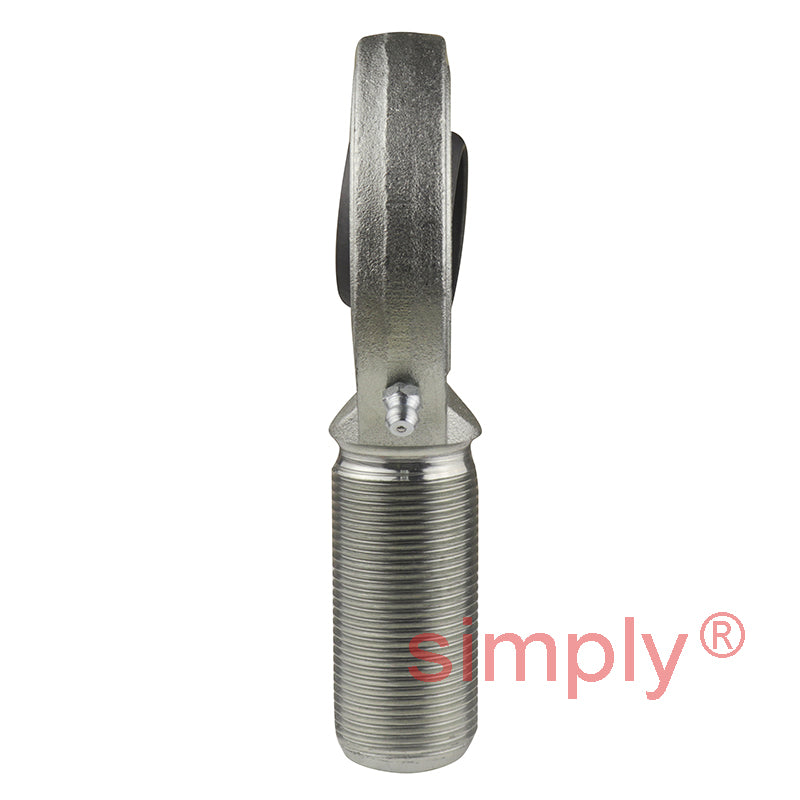

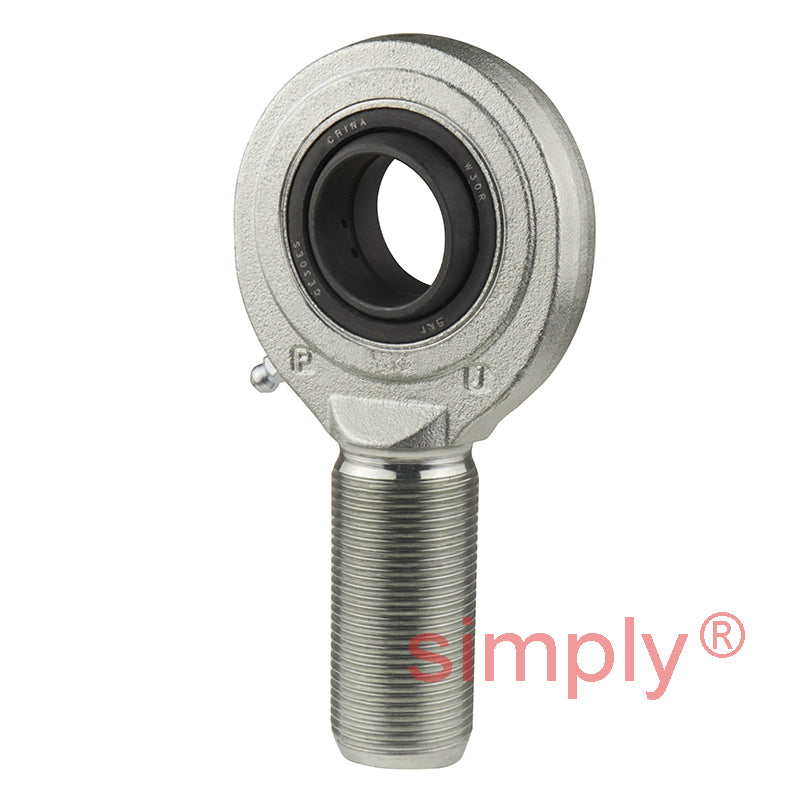

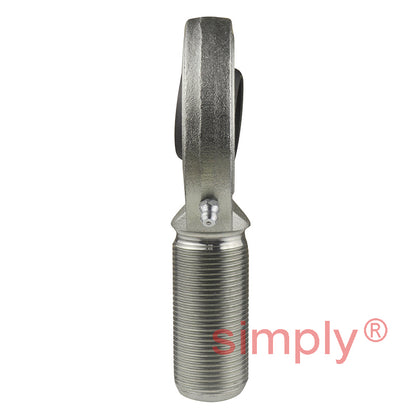

SKF SA30ES Right Hand Steel / Steel Plain Male Rod End M30x2 Thread

Name: SKF SA30ES Right Hand Steel / Steel Plain Male Rod End M30x2 Thread
Brand: SKF
SKU: SA30ES-SKF
Price: 109.35 USD
Availability: InStock

$109.35 ex VAT

Sale Sold out

Equivalent to: FE30D GAR30DO

In stock

Price Break

10+ $73.25

19+ $69.13

29+ $68.31

39+ $67.48

49+ $66.66

74+ $65.84

99+ $61.72

199+ $60.90

249+ $60.08

499+ $59.25

999+ $57.61

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF SA..ES Series Rod End Bearings: This series is classed as rod end bearings requiring maintenance. Comprising of sliding contact surfaces of steel against steel these rod end bearings are unsealed and require maintenance from time to time, there is a dedicated lubrication point on models from 15 to 20mm provided in the form of a 2.5mm dia lubrication hole in the rod end head, models from 25 to 80mm are provided with a grease nipple, this aligns with an annular groove in the outer raceways and the lubricant passes through small holes onto the mating surfaces, there is also an annular groove on the inside of the ball so lubricant can also be fed through the spindle on which it is mounted if required. These are metric sized male rod end bearings. They are made of heat treatable C45V steel and zinc coated and chromatized and will operate within -50 deg C to +200 deg C. Available in Right or Left hand threads, the Left hand threaded version has a letter L in the part number to denote the difference.
Application: Suitable for heavy static or alternating loads, shock loads.
Benefits: Re-lubricate-able, cleanable.

Brand / Quality:: SKF - High Quality
Thread Size:: M30x2
Thread M / F:: Male
Thread Direction:: Right Hand
Inside Diameter:: 30mm

Technical

d	30mm
d2 max	75mm
G	M30x2
B	22mm
C1 max	20mm
h	110mm
a	6deg
Dynamic load C	62 kN
Static load Co	81.5 kN
Weight	0.9 kg
dk	40.7mm
l1 min	65mm
l2 max	149mm
l7 min	34mm
r1 min	0.6mm
