SKU: SAF1518/3-3/16-SKF

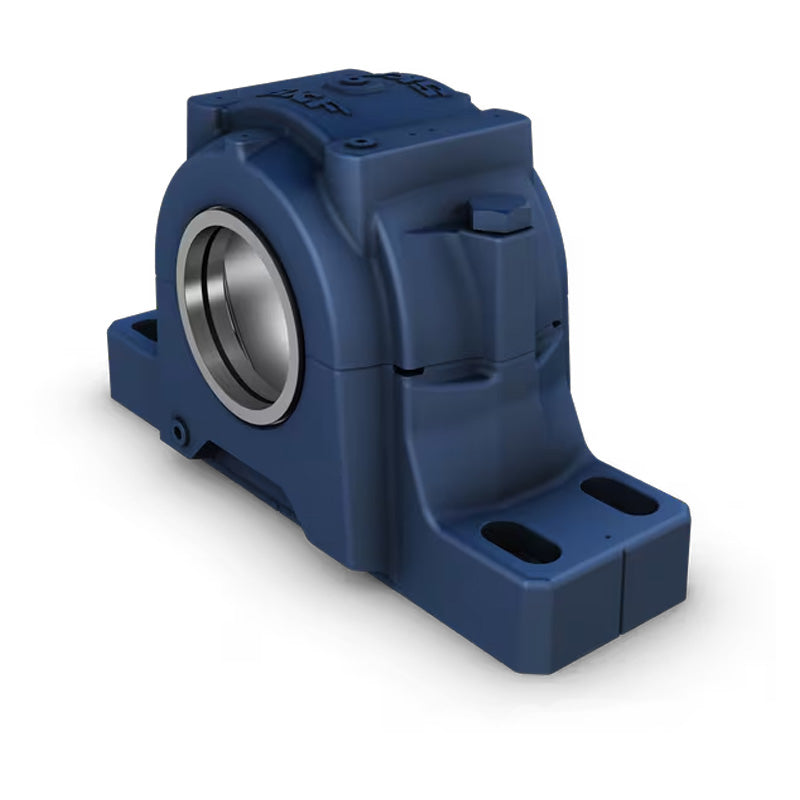

SKF SAF1518/3-3/16 Cast Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
SKF SAF1518/3-3/16 Cast Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
Out of stock
Description
Description
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 80.96mm = 3.187 (3-3/16) inch
Technical
Technical
| Housing | SAF518 |
|---|---|
| Triple Ring Seal | LOR188 |
| Taconite Seal | TER188 |
| Bearing | 1218K |
| Adaptor Sleeve | HA218 |
| Fixing Rings | 2 x SR1518 |
| End Cover | EPR11 |
| da | 3-3/16 inch |
| A1 | 3-7/8 inch = 98.4mm |
| A2 | 5-7/8 inch = 149.2mm |
| A3 | 8-1/8 inch = 206.4mm |
| H | 7-23/32 inch = 196.1mm |
| H1 | 4 inch = 101.6mm |
| H2 | 1-5/8 inch = 41.3mm |
| Static oil level H3 Roller bearing | 1-1/2 inch = 38.1mm |
| Static oil level H3 Ball bearing | 1-1/2 inch = 38.1mm |
| J max | 11-3/4 inch = 298.5mm |
| J min | 10-1/4 inch = 260.4mm |
| L | 13-3/4 inch = 349.3mm |
| X | 3/16 inch = 4.76mm |
| Bolts (required) G | (2) 3/4 inch = 20mm |
| Weight | 20 kg |
