SKU: SAF22532/5-1/2-SKF

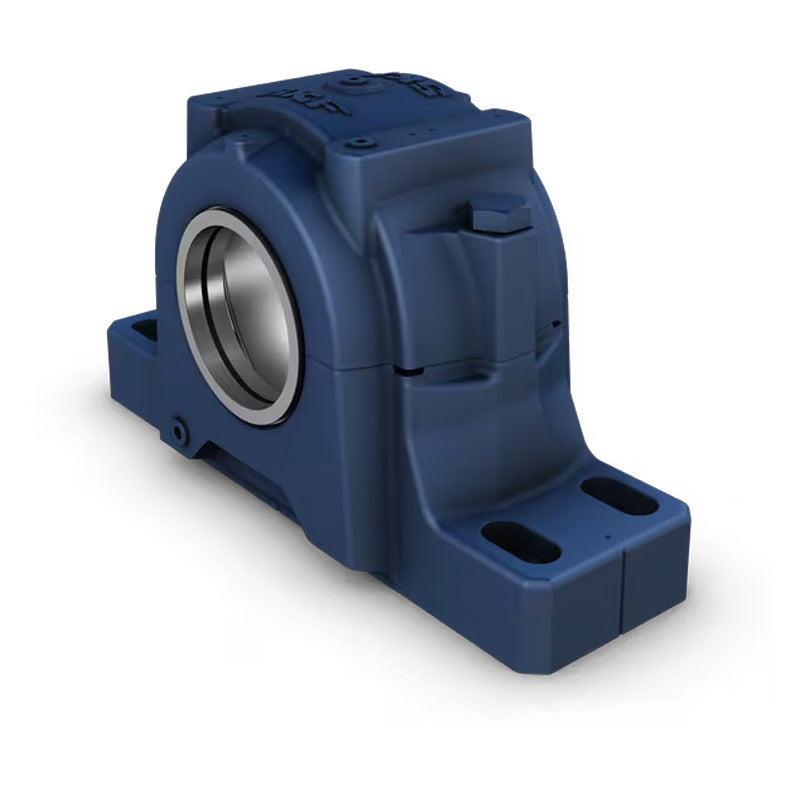

SKF SAF22532/5-1/2 Cast Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
SKF SAF22532/5-1/2 Cast Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
Out of stock
Description
Description
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 139.7mm = 5.5 (5-1/2) inch
Technical
Technical
| Housing | SAF532 |
|---|---|
| Triple Ring Seal | LOR131 |
| Taconite Seal | TER131 |
| Bearing | 22232CCK/W33 |
| Adaptor Sleeve | HE3132 |
| Fixing Rings | 1 x SR32-0 |
| End Cover | EPR16 |
| da | 5-1/2 inch |
| A1 | 6-1/4 inch = 158.8mm |
| A2 | 8-3/4 inch = 222.3mm |
| A3 | 11-3/8 inch = 288.9mm |
| H | 13-5/16 inch = 338.1mm |
| H1 | 6-11/16 inch = 169.86mm |
| H2 | 2-5/8 inch = 66.7mm |
| Static oil level H3 | 2-1/16 inch = 52.4mm |
| J max | 19-1/4 inch = 489mm |
| J min | 17-3/8 inch = 441.3mm |
| J1 | 3-3/4 inch = 95.3mm |
| L | 22 inch = 558.8mm |
| X | 3/16 inch = 4.76mm |
| Bolts (required) G | (4) 1 inch = 24mm |
| Weight | 111.1 kg |
