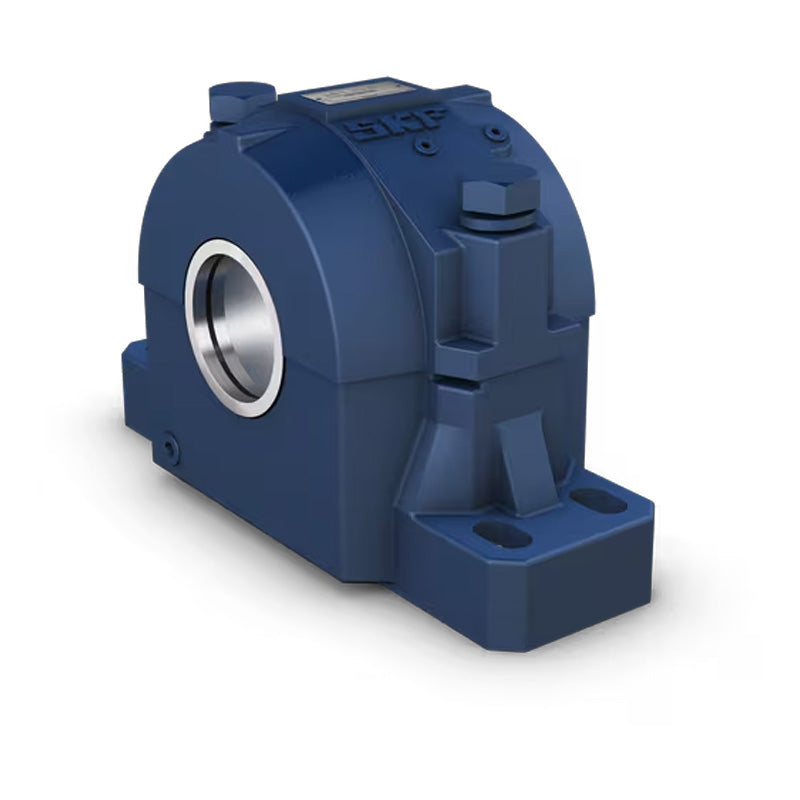

SKF SAF22617/2-15/16 Cast Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
SKF SAF22617/2-15/16 Cast Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
Out of stock
Description
Description
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 74.61mm = 2.937 (2-15/16) inch
Technical
Technical
| Housing | SAF617 |
|---|---|
| Triple Ring Seal | LOR184 |
| Taconite Seal | TER184 |
| Bearing | 22317EK |
| Adaptor Sleeve | HA2317 |
| Fixing Rings | 1 x SR20-17 |
| End Cover | EPR10 |
| da | 2-15/16 inch |
| A1 | 4-3/8 inch = 111.1mm |
| A2 | 6-3/4 inch = 171.5mm |
| A3 | 9-1/8 inch = 231.8mm |
| H | 8-3/4 inch = 222.3mm |
| H1 | 4-1/2 inch = 114.3mm |
| H2 | 1-3/4 inch = 44.5mm |
| Static oil level H3 Roller bearing | 1-3/4 inch = 44.5mm |
| Static oil level H3 Ball bearing | 1-7/8 inch = 47.6mm |
| J max | 13-1/8 inch = 333.4mm |
| J min | 11-5/8 inch = 295.3mm |
| L | 15-1/4 inch = 387.4mm |
| X | 3/16 inch = 4.76mm |
| Bolts (required) G | (2) 7/8 inch = 22mm |
| Weight | 34 kg |
