SKU: SAF23034KA/5-15/16-SKF

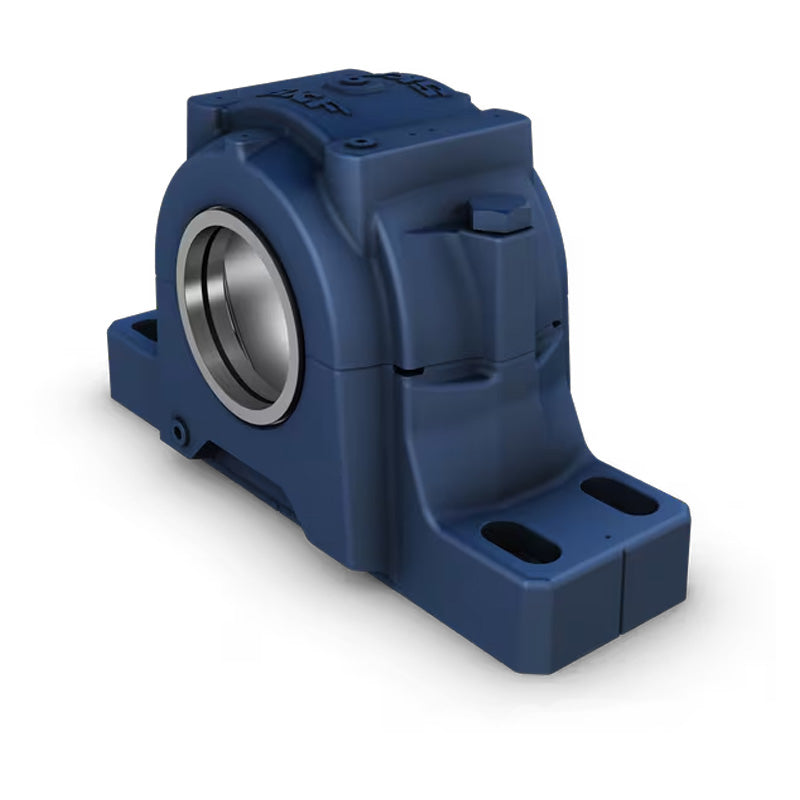

SKF SAF23034KA/5-15/16 Cast Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
SKF SAF23034KA/5-15/16 Cast Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
Out of stock
Description
Description
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 150.81mm = 5.937 (5-15/16) inch
Technical
Technical
| Housing | SAF034KA |
|---|---|
| Triple Ring Seal | LOR140 |
| Taconite Seal | TER140 |
| Bearing | 23034CCK/W33 |
| Adaptor Sleeve | SNW3034x5-15/16 |
| Fixing Rings | 2 x SR0-24 |
| End Cover | EPR18 |
| da | 5-15/16 inch |
| A1 | 5-7/8 inch = 149.2mm |
| A2 | 7-5/8 inch = 193.7mm |
| A3 | 10-5/16 inch = 261.9mm |
| H | 11-3/4 inch = 298.5mm |
| H1 | 6 inch = 152.4mm |
| H2 | 2-3/8 inch = 60.3mm |
| Static oil level H3 | 1-23/32 inch = 43.7mm |
| J max | 17-1/8 inch = 435mm |
| J min | 16 inch = 406.4mm |
| J1 | 3-3/8 inch = 85.7mm |
| L | 20-1/8 inch = 511.2mm |
| Bolts (required) G | (4) 1 inch = 24mm |
| Weight | 77.1 kg |
