SKU: SAFC2510/1-3/4-SKF

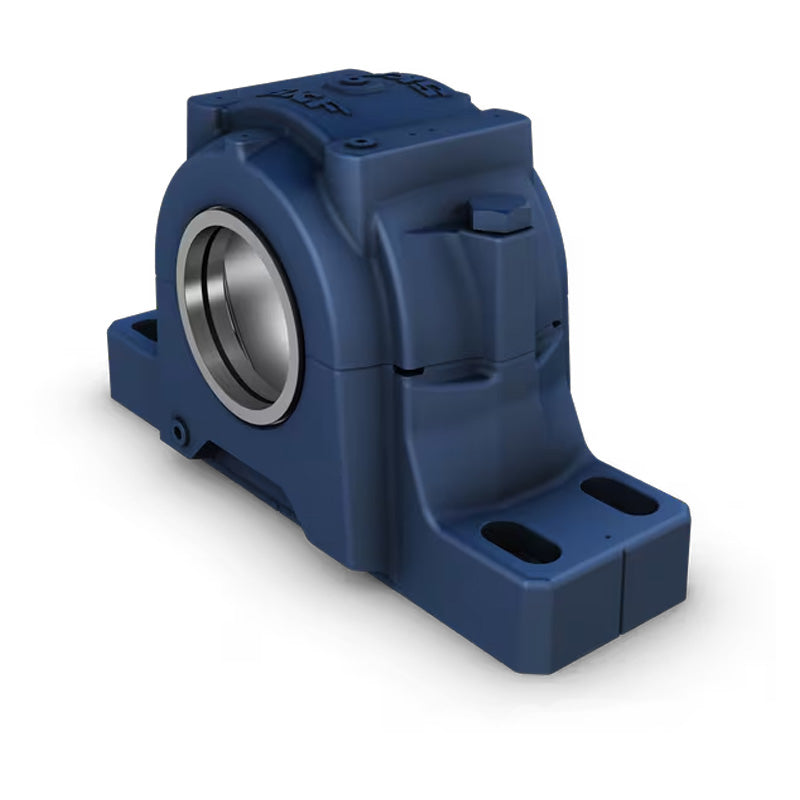

SKF SAFC2510/1-3/4 Cast Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
SKF SAFC2510/1-3/4 Cast Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
Out of stock
Description
Description
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 44.45mm = 1.75 (1-3/4) inch
Technical
Technical
| Housing | SAF510 |
|---|---|
| Triple Ring Seal | LER21 |
| Taconite Seal | TER21 |
| Bearing | C2210EK |
| Adaptor Sleeve | HE310E |
| Fixing Rings | 1 x SR10-0 |
| End Cover | EPR4 |
| da | 1-3/4 inch |
| A1 | 2-3/8 inch = 60.3mm |
| A2 | 3-5/8 inch = 92.1mm |
| A3 | 6-1/2 inch = 165.1mm |
| H | 4-13/16 inch = 122mm |
| H1 | 2-1/2 inch = 63.5mm |
| H2 | 15/16 inch = 23.8mm |
| Static oil level H3 Roller bearing | 1-3/32 inch = 27.8mm |
| Static oil level H3 Ball bearing | 1-1/8 inch = 28.6mm |
| J max | 7 inch = 177.8mm |
| J min | 6-1/2 inch = 165.1mm |
| L | 8-1/4 inch = 209.6mm |
| X | 3/16 inch = 4.76mm |
| Bolts (required) G | (2) 1/2 inch = 12mm |
| Weight | 5.2 kg |
