SKU: SAFC2544/7-15/16-SKF

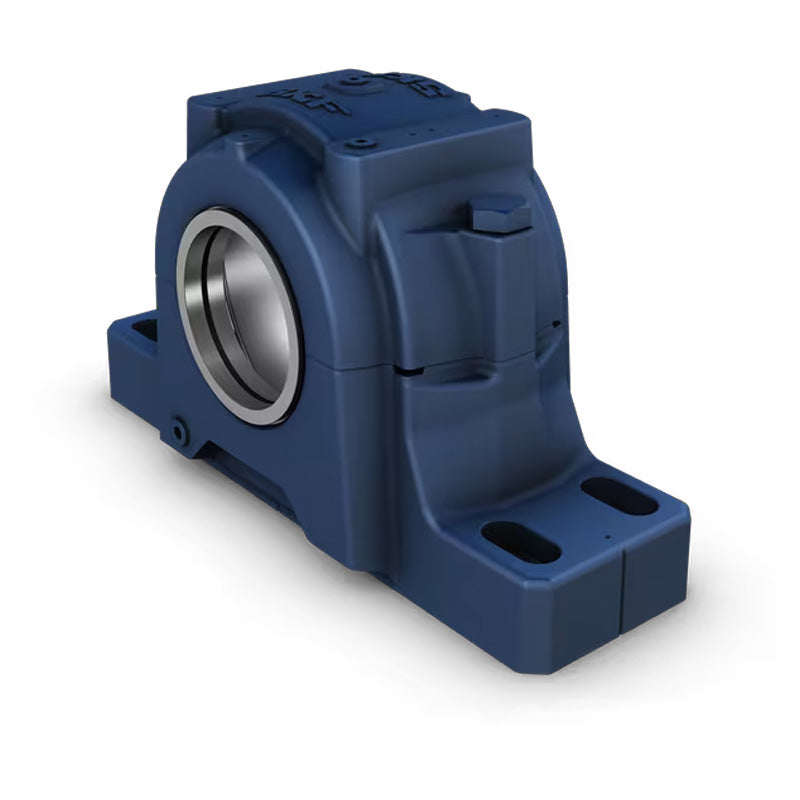

SKF SAFC2544/7-15/16 Cast Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly

Name: SKF SAFC2544/7-15/16 Cast Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
Brand: SKF
SKU: SAFC2544/7-15/16-SKF
Availability: OutOfStock

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: SKF - High Quality
Inside Diameter:: 201.61mm = 7.937 (7-15/16) inch

Technical

Housing	SAF544
Triple Ring Seal	LOR167
Taconite Seal	TER167
Bearing	C2244K
Adaptor Sleeve	HA3144L
Fixing Rings	1 x SR44-38
End Cover	EPR23
da	7-15/16 inch
A1	8-3/4 inch = 222.3mm
A2	12 inch = 304.8mm
A3	14-1/2 inch = 368.3mm
H	18-5/8 inch = 473.1mm
H1	9-1/2 inch = 241.3mm
H2	3-3/4 inch = 95.3mm
Static oil level H3	3-1/8 inch = 79.4mm
J max	27-7/8 inch = 708mm
J min	24-3/4 inch = 628.7mm
J1	5-1/4 inch = 133.4mm
L	32-3/4 inch = 831.9mm
X	3/16 inch = 4.76mm
Bolts (required) G	(4) 1-1/2 inch = 36mm
Weight	305 kg
