SKU: SAFD1511/50-SKF

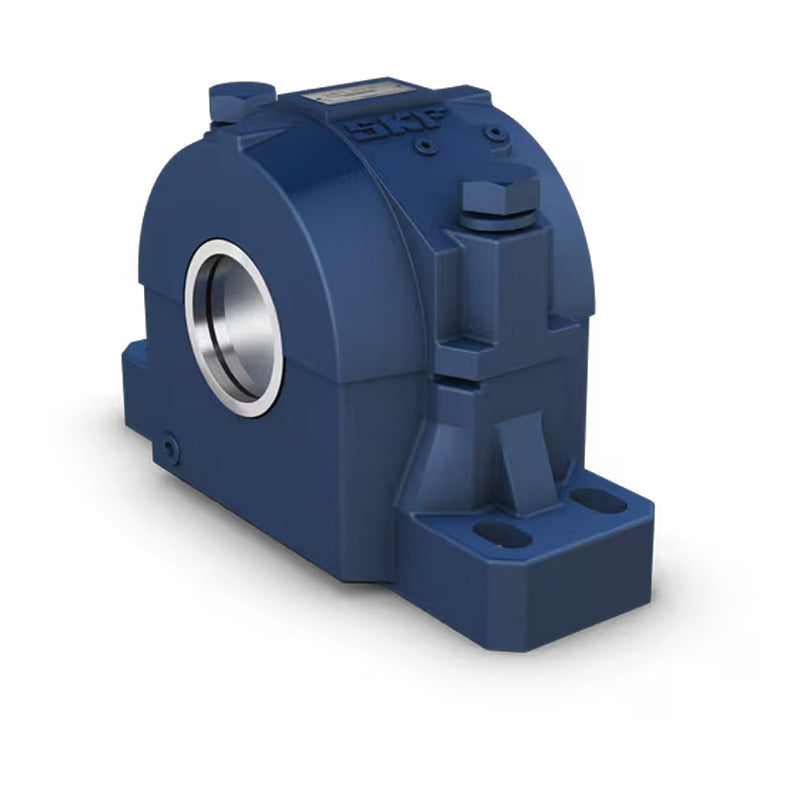

SKF SAFD1511/50 Ductile Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
SKF SAFD1511/50 Ductile Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
Out of stock
Description
Description
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 50mm
Technical
Technical
| Housing | SAFD511 |
|---|---|
| Triple Ring Seal | LER610 |
| Bearing | 1211EK |
| Adaptor Sleeve | H211 |
| Fixing Rings (2 required) | FRB6/100 |
| da | 50mm |
| A | 95mm = 3-3/4 inch |
| A1 | 70mm = 2-3/4 inch |
| A2 | 98mm = 3-7/8 inch |
| A3 | 178mm = 7 inch |
| H | 133mm = 5-1/4 inch |
| H1 | 69.85mm = 2-3/4 inch |
| H2 | 24mm = 15/16 inch |
| H3 | 30mm = 1-3/16 inch |
| L | 245mm = 9-5/8 inch |
| J max | 200mm = 7-7/8 inch |
| J min | 187mm = 7-3/8 inch |
| Bolts (required) | (2) 16mm = 5/8 inch |
| End plug | EPR5 |
| Weight | 7.5 kg |
