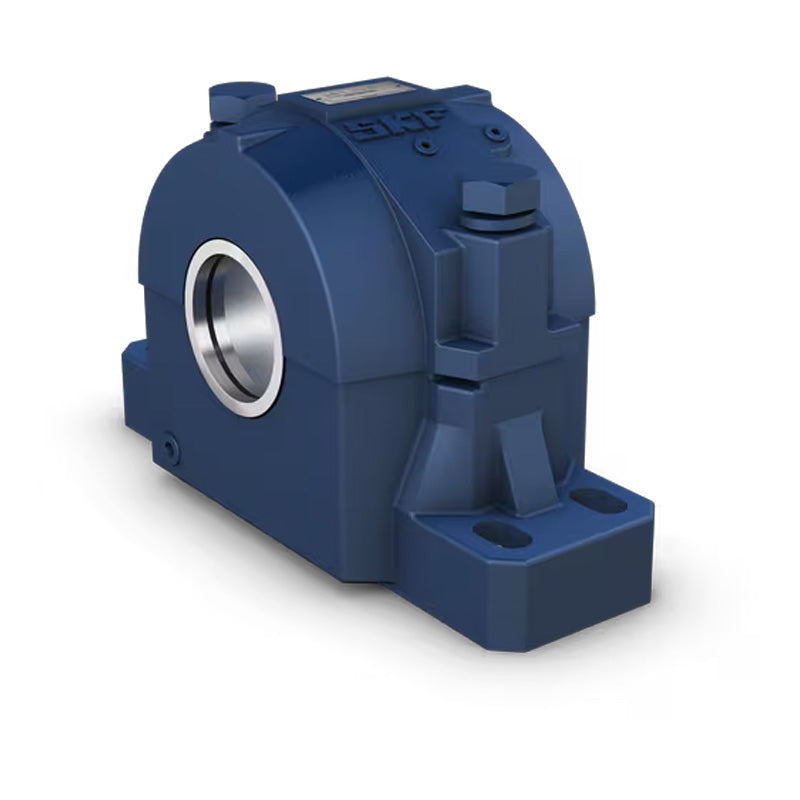

SKF SAFD22528/5 Ductile Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly

SKF SAFD22528/5 Ductile Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
$5,914.68 ex VAT
$5,914.68 ex VAT
Sale Sold out

In stock

Price Break
4+ $3,961.82
9+ $3,739.25
19+ $3,694.73
29+ $3,650.22
39+ $3,605.70
49+ $3,561.19
59+ $3,338.61
69+ $3,294.10
79+ $3,249.59
89+ $3,205.07
99+ $3,116.04

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SKF - High Quality
Inside Diameter:
127mm = 5 inch
Technical
Housing SAFD528
Triple Ring Seal LOR123
Taconite Service Seal TER528/5
Bearing 22228CCK/W33
Adaptor Sleeve HE3128
Fixing Rings (2 required) FRB15/250

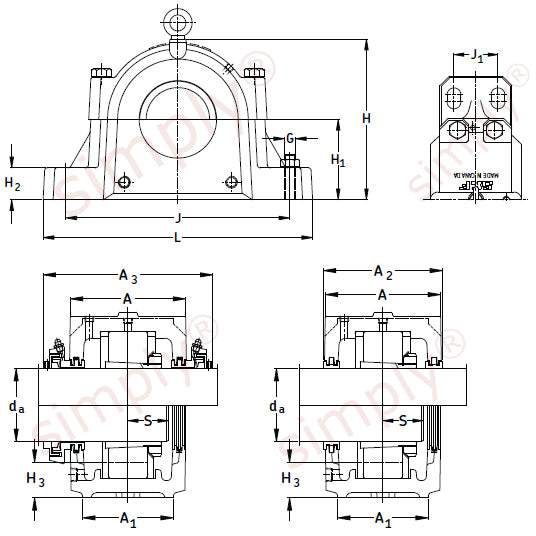

da 5 inch
A 7-3/8 inch = 187mm
A1 5-7/8 inch = 149mm
A2 7-5/8 inch = 194mm
A3 10-1/2 inch = 267mm
H 12 inch = 305mm
H1 6 inch = 152.4mm
H2 2-3/8 inch = 60mm
H3 2-1/32 inch = 52mm
L 20-1/8 inch = 511mm
J max 17-1/8 inch = 435mm
J min 16 inch = 406mm
J1 3-3/8 inch = 86mm
Bolts (required) G (4) 1 inch = 24mm
End Plug EPR27
Weight 80 kg
