SKU: SAFDC3524/110-SKF

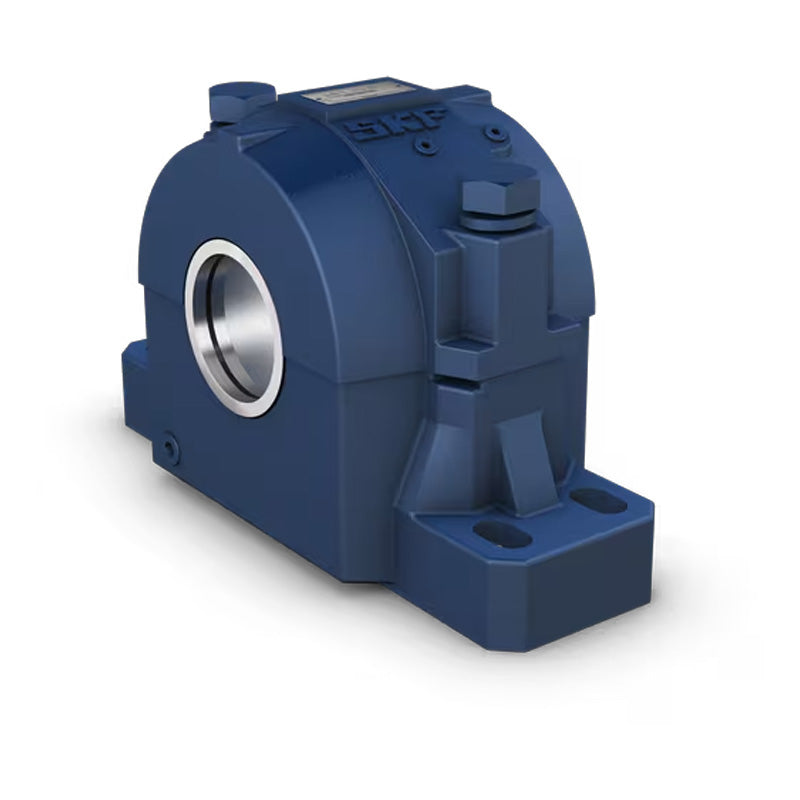

SKF SAFDC3524/110 Ductile Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
SKF SAFDC3524/110 Ductile Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
Out of stock
Share this product
Description
Description
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 110mm
Technical
Technical
| Housing | SAFD524M |
|---|---|
| Triple Ring Seal | LOR655 |
| Bearing | C3224K |
| Adaptor Sleeve | H2324L |
| Fixing Rings (2 required) | FRB5/215 |
| da | 110mm |
| A | 181mm = 7-1/8 inch |
| A1 | 121mm = 4-3/4 inch |
| A2 | 187mm = 7-3/8 inch |
| A3 | 262mm = 10-5/16 inch |
| H | 260mm = 10-1/4 inch |
| H1 | 133.35mm = 5-1/4 inch |
| H2 | 54mm = 2-1/8 inch |
| H3 | 47mm = 1-27/32 inch |
| L | 419mm = 16-1/2 inch |
| J max | 368mm = 14-1/2 inch |
| J min | 337mm = 13-1/4 inch |
| J1 | 70mm = 2-3/4 inch |
| Bolts (required) | (4) 20mm = 3/4 inch |
| End plug | EPR14 |
| Weight | 52 kg |
