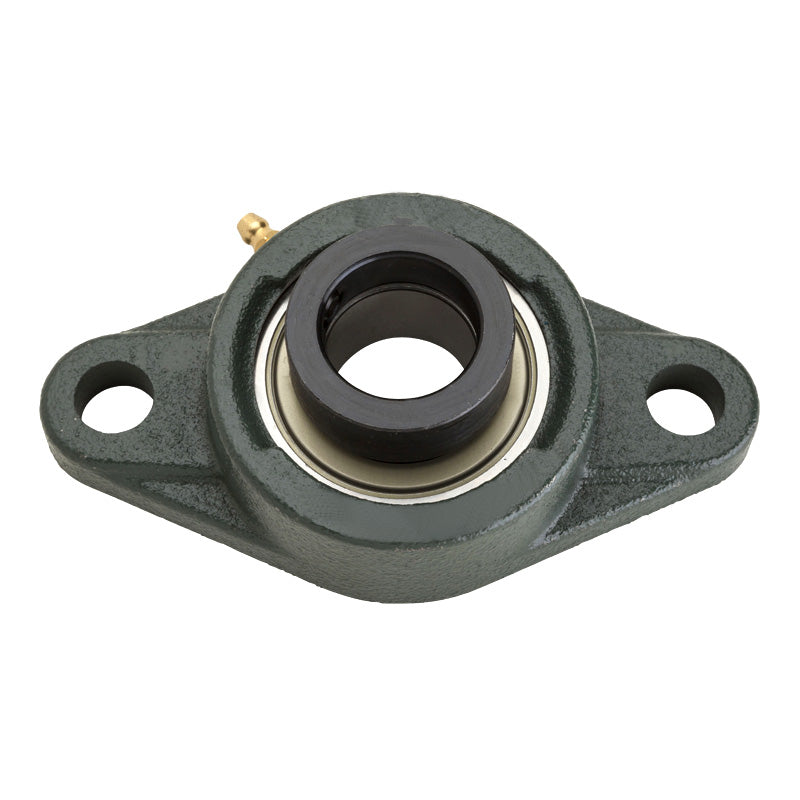

• SAFL201S Metric Two Bolt Oval Cast Iron Flange Housing with 12mm Bore Insert with Locking Collar
1 1

SKU: SAFL.201S

SAFL201S Metric Two Bolt Oval Cast Iron Flange Housing with 12mm Bore Insert with Locking Collar

SAFL201S Metric Two Bolt Oval Cast Iron Flange Housing with 12mm Bore Insert with Locking Collar
$14.16 ex VAT
$14.16 ex VAT
Sale Sold out

In stock

Price Break
3+ $9.49
4+ $8.95
9+ $8.85
19+ $8.74
49+ $8.63
99+ $8.53
499+ $7.99
999+ $7.89
1999+ $7.78
2999+ $7.67
4999+ $7.46

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
12mm
Style:
SAFL
Bolt Hole Centres:
76.5mm
Technical
Bore 12mm
L 56mm
H 98.5mm
J 76.5mm
P 12mm
A 25.5mm
A1 36.3mm
A4 10.6mm
Be 12mm
D 40mm
z 19.1mm
n 6mm
m 13.1mm
Bi 28.6mm
k 28.6mm
W 13.5mm
G 5mm
h 3.6mm
Grub Screw M6X1.0
Weight 0.49 kg
Dynamic Load 960 kgf
Static Load 480 kgf
Rec max Speed 8800 rpm
