SKU: SAKAC12M-CDX

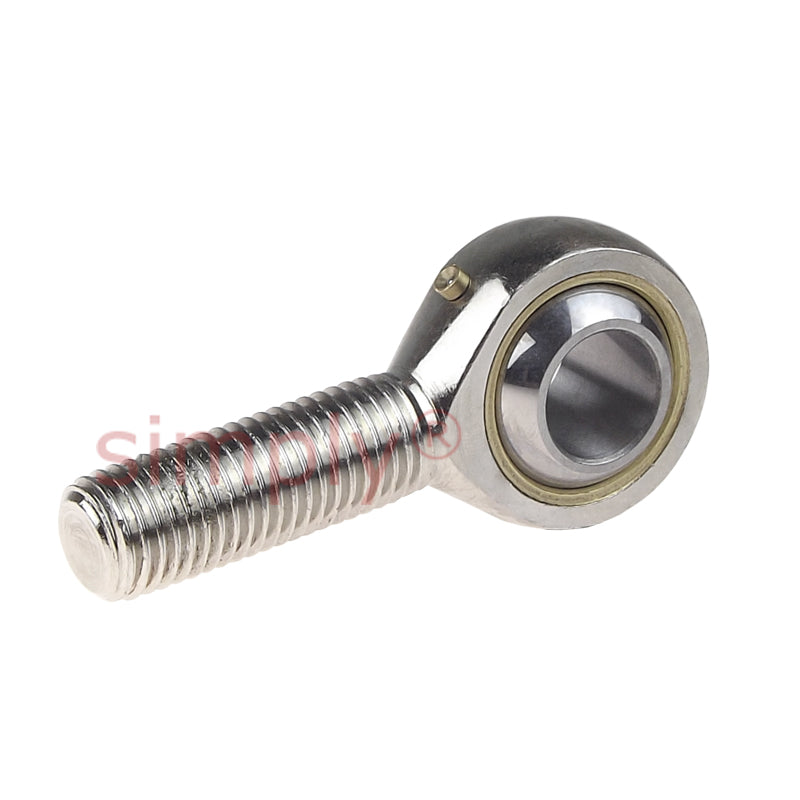

Codex SAKAC12M Right Hand Steel / Bronze Lined Plain Male Rod End M12 Thread
- Regular price
- $19.78 ex VAT
- Sale price
- $19.78
- Regular price
-
In stock
Quantity Price Breaks
10
$17.60
19
$16.62
29
$16.42
39
$16.22
49
$16.02
74
$15.82
99
$14.84
199
$14.64
249
$14.44
499
$14.24
999
$13.85
SKU:
SAKAC12M-CDX
Codex SAKAC12M Right Hand Steel / Bronze Lined Plain Male Rod End M12 Thread
- Regular price
- $19.78 ex VAT
- Sale price
- $19.78
- Regular price
-
Description
|
SAKAC..M Series Rod End Bearings: These rod end bearings comprise of sliding contact surfaces of steel against bronze. They are unsealed and although they are low maintenance they may require re-lubrication from time to time via the re lubrication point in the side of the head this will serve to extend it's life cycle. Operating temperatures are within -30deg C to +180 deg C. Left and Right hand threaded versions are available an L in the part number denotes the left hand option. These are metric sized rod end bearings. Application: Lower load carrying capacity compared to steel/steel rod ends, but more suitable for applications where lubricant starvation might occur. Benefits: Lower maintenance. |
Technical
| d | = | 12mm |
| d2 max | = | 33mm |
| G | = | M12 |
| B | = | 16mm |
| C1 max | = | 12mm |
| h1 | = | 54mm |
| Max misalignment angle | = | 13 degrees |
| Dynamic load | = | 12.2 kN |
| Static load | = | 12.2 kN |
| dk | = | 22.2mm |
| l1 min | = | 32mm |
| l2 max | = | 72mm |
| r1 min | = | 0.3mm |
| Weight | = | 0.085 kg |
