SKU: SAKAC14M-CDX

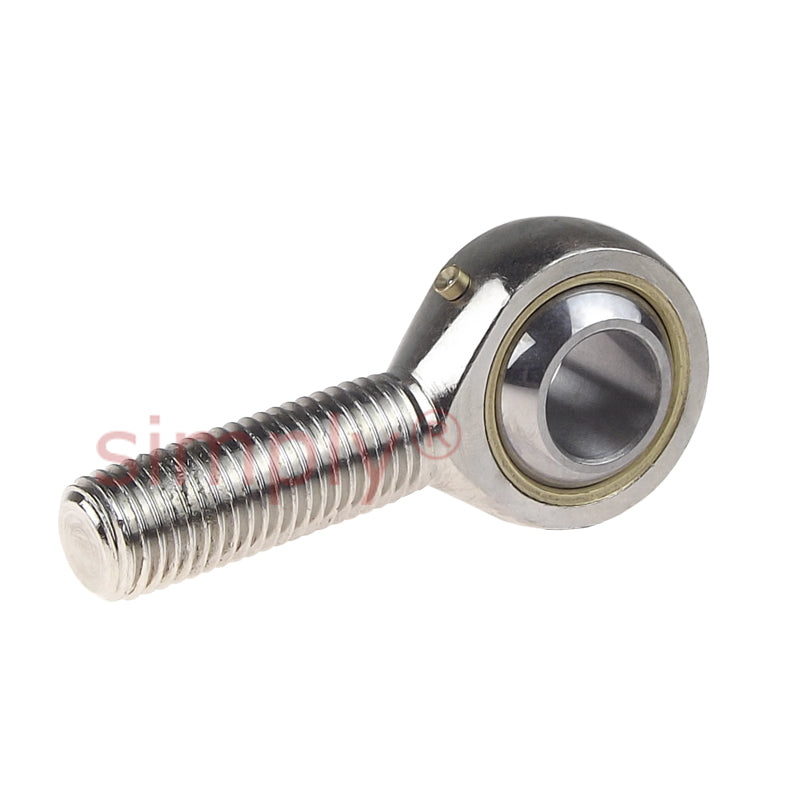

Codex SAKAC14M Right Hand Steel / Bronze Lined Plain Male Rod End M14 Thread
- Regular price
- $28.02 ex VAT
- Sale price
- $28.02
- Regular price
-
In stock
Quantity Price Breaks
10
$24.94
19
$23.54
29
$23.26
39
$22.98
49
$22.70
74
$22.42
99
$21.02
199
$20.73
249
$20.45
499
$20.17
999
$19.61
SKU:
SAKAC14M-CDX
Codex SAKAC14M Right Hand Steel / Bronze Lined Plain Male Rod End M14 Thread
- Regular price
- $28.02 ex VAT
- Sale price
- $28.02
- Regular price
-
Description
|
SAKAC..M Series Rod End Bearings: These rod end bearings comprise of sliding contact surfaces of steel against bronze. They are unsealed and although they are low maintenance they may require re-lubrication from time to time via the re lubrication point in the side of the head this will serve to extend it's life cycle. Operating temperatures are within -30deg C to +180 deg C. Left and Right hand threaded versions are available an L in the part number denotes the left hand option. These are metric sized rod end bearings. Application: Lower load carrying capacity compared to steel/steel rod ends, but more suitable for applications where lubricant starvation might occur. Benefits: Lower maintenance. |
Technical
| d | = | 14mm |
| d2 max | = | 37mm |
| G | = | M14 |
| B | = | 19mm |
| C1 max | = | 13.5mm |
| h1 | = | 60mm |
| Max misalignment angle | = | 16 degrees |
| Dynamic load | = | 17 kN |
| Static load | = | 17.3 kN |
| dk | = | 25.4mm |
| l1 min | = | 36mm |
| l2 max | = | 80mm |
| r1 min | = | 0.3mm |
| Weight | = | 0.13 kg |
