SKU: SAKAC25M-CDX

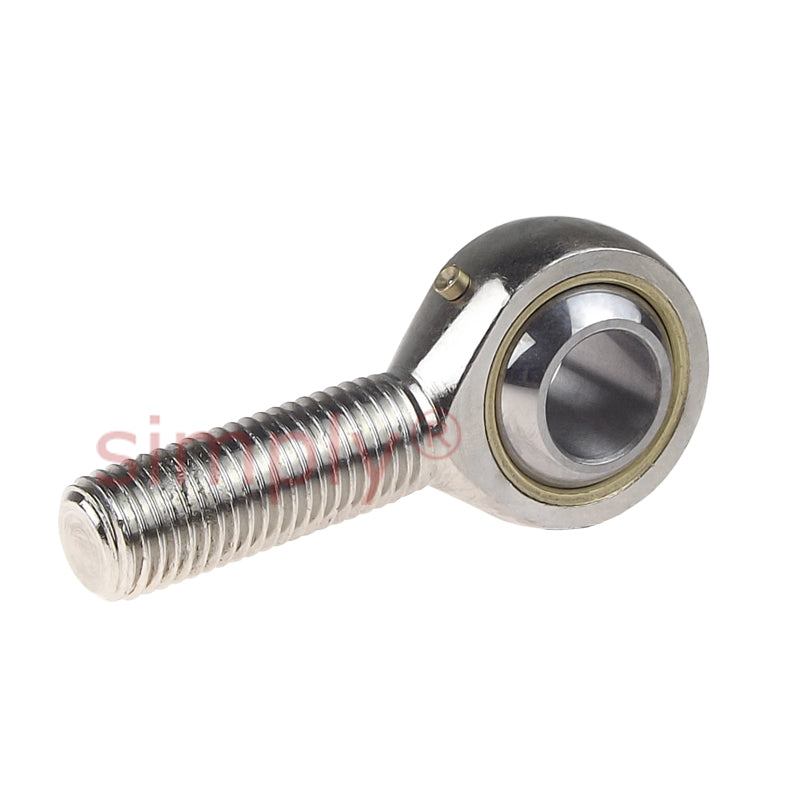

Codex SAKAC25M Right Hand Steel / Bronze Lined Plain Male Rod End M24x2 Thread

Name: Codex SAKAC25M Right Hand Steel / Bronze Lined Plain Male Rod End M24x2 Thread
Brand: Codex
SKU: SAKAC25M-CDX
Price: 60.10 USD
Availability: InStock

$60.10 ex VAT

Sale Sold out

Equivalent to: POS25 SM25 MB-M25 GAKFR25PB

In stock

Price Break

10+ $40.26

19+ $38.00

29+ $37.54

39+ $37.09

49+ $36.64

74+ $36.19

99+ $33.92

199+ $33.47

249+ $33.02

499+ $32.57

999+ $31.66

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SAKAC..M Series Rod End Bearings: These rod end bearings comprise of sliding contact surfaces of steel against bronze. They are unsealed and although they are low maintenance they may require re-lubrication from time to time via the re lubrication point in the side of the head this will serve to extend it's life cycle. Operating temperatures are within -30deg C to +180 deg C. Left and Right hand threaded versions are available an L in the part number denotes the left hand option. These are metric sized rod end bearings.
Application: Lower load carrying capacity compared to steel/steel rod ends, but more suitable for applications where lubricant starvation might occur.
Benefits: Lower maintenance.

Brand / Quality:: Codex - Good Quality
Thread Size:: M24x2
Thread M / F:: Male
Thread Direction:: Right Hand
Inside Diameter:: 25mm
Material:: Bronze Lined

Technical

d	25mm
d2 max	61mm
G	M24x2
B	31mm
C1 max	22mm
h1	94mm
Max misalignment angle	15 degrees
Dynamic load	46.5 kN
Static load	46.5 kN
dk	42.8mm
l1 min	55mm
l2 max	127mm
r1 min	0.3mm
Weight	0.6 kg
