SKU: SAKB14F-SKF

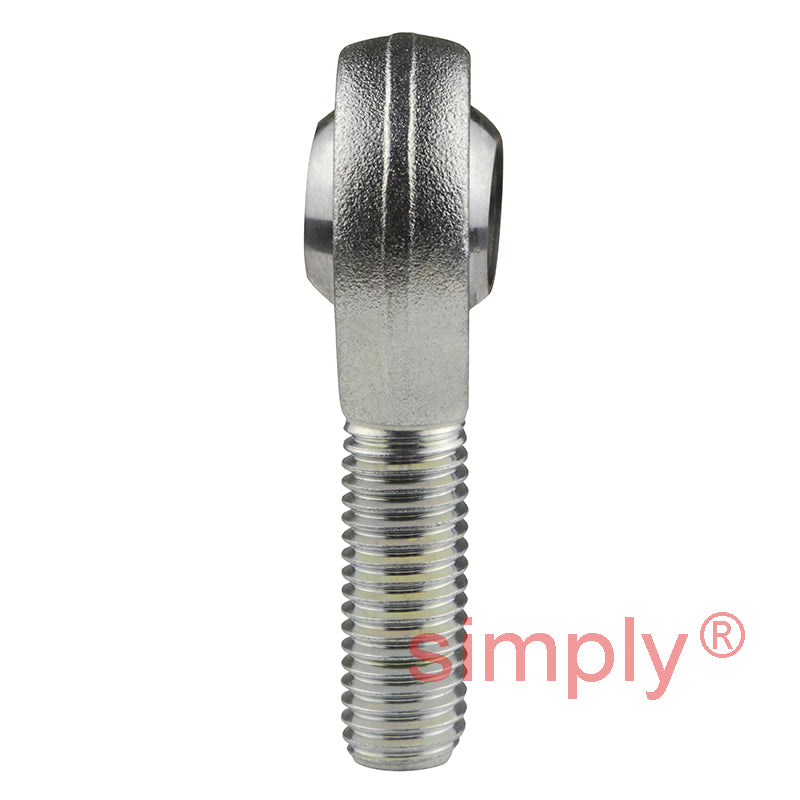

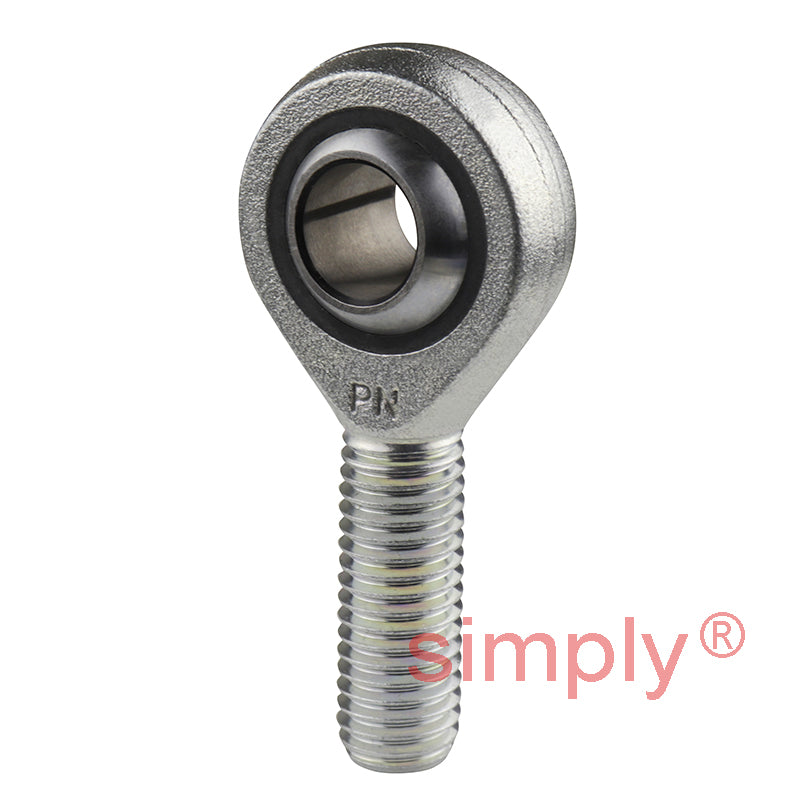

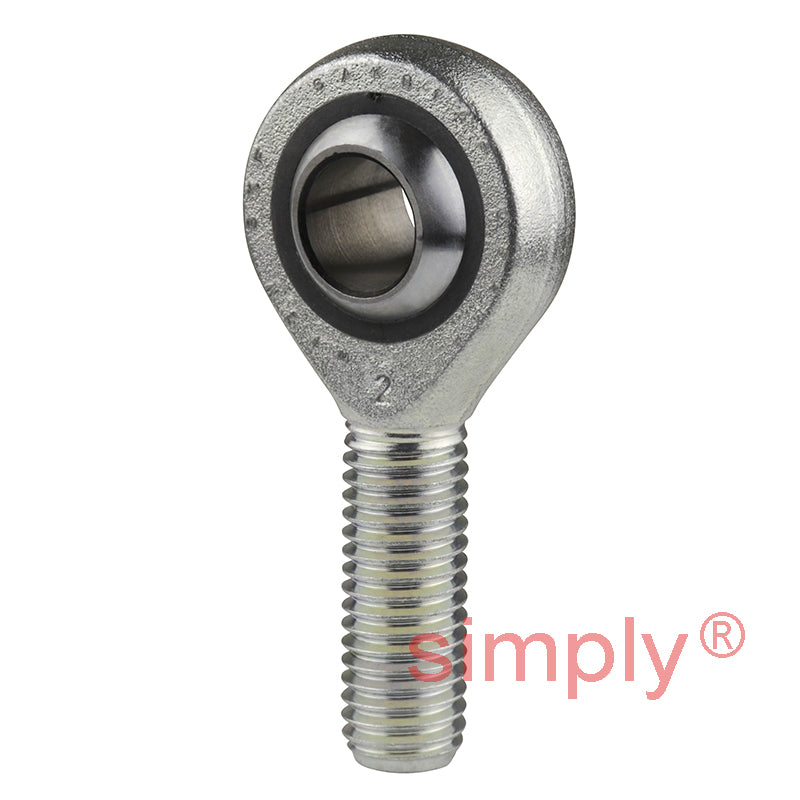

SKF SAKB14F Right Hand Steel / PTFE FRP Lined Plain Male Rod End M14 Thread
- Regular price
- $91.57 ex VAT
- Sale price
- $91.57
- Regular price
-
Not in stock
Quantity Price Breaks
10
$81.50
19
$76.92
29
$76.00
39
$75.09
49
$74.17
74
$73.26
99
$68.68
199
$67.76
249
$66.85
499
$65.93
999
$64.10
SKU:
SAKB14F-SKF
SKF SAKB14F Right Hand Steel / PTFE FRP Lined Plain Male Rod End M14 Thread
- Regular price
- $91.57 ex VAT
- Sale price
- $91.57
- Regular price
-
Description
|
SKF SAKB..F Series Rod End Bearings: This series is classed as maintenance free rod end bearings. Comprising of sliding contact surfaces of steel against PTFE impregnated fibre re-in forced polymer (FRP) these rod end bearings are unsealed and will operate within -40deg C to +75 deg C, load carrying capacity will be reduced over +50 degrees C. Rod ends with a Steel / PTFE FRP sliding contact surface combination consist of a rod end housing and a spherical plain bearing inner ring. Between the housing and the inner ring, a sliding layer of fibre reinforced polymer, containing PTFE, is molded to the housing. Left and Right hand threaded versions are available an L in the part number denotes the left hand option. These are metric sized rod end bearings. Application: Suitable for heavy, constant direction loads, where low coefficient of friction is required; limited suitability for alternating loads, shock loads. Benefits: Maintenance free, Steel / PTFE FRP |
