SKU: SAKB16F-SKF

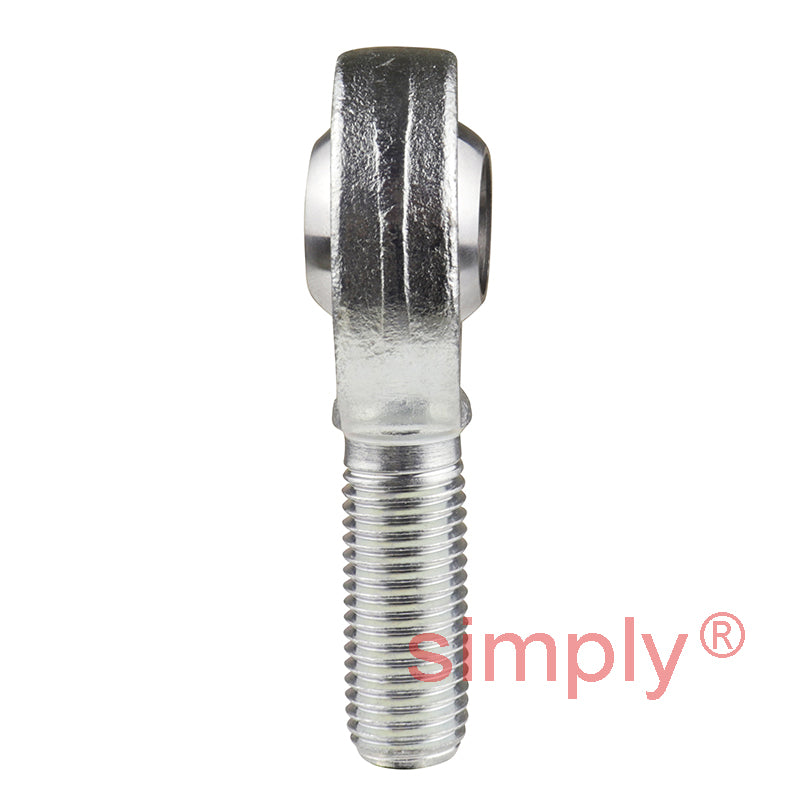

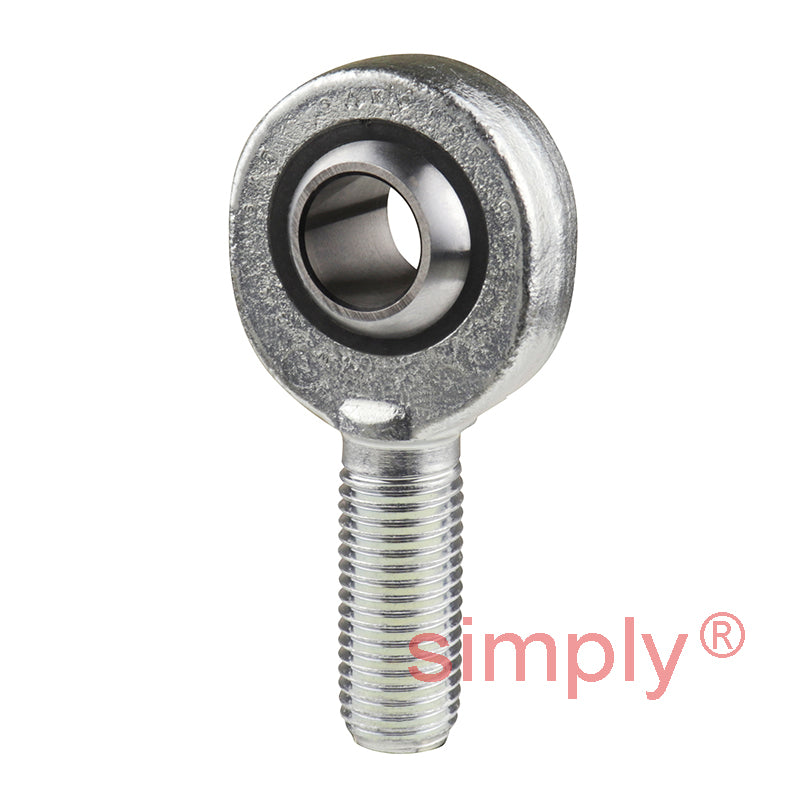

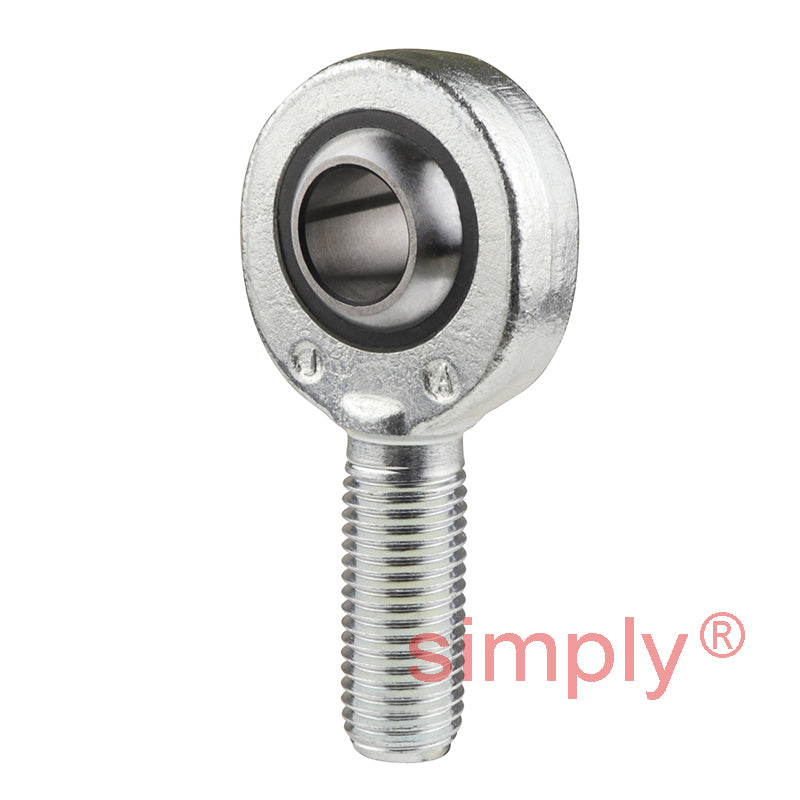

SKF SAKB16F Right Hand Steel / PTFE FRP Lined Plain Male Rod End M16 Thread
SKF SAKB16F Right Hand Steel / PTFE FRP Lined Plain Male Rod End M16 Thread
Regular price
$60.73
ex VAT
Regular price
Sale price
$60.73
ex VAT
Equivalent to: MS-M16
In stock
Price Break
10+
$40.68
19+
$38.40
29+
$37.94
39+
$37.48
49+
$37.02
74+
$36.57
99+
$34.28
199+
$33.82
249+
$33.37
499+
$32.91
999+
$32.00
Quantity
Couldn't load pickup availability
Description
Description
|
SKF SAKB..F Series Rod End Bearings: This series is classed as maintenance free rod end bearings. Comprising of sliding contact surfaces of steel against PTFE impregnated fibre re-in forced polymer (FRP) these rod end bearings are unsealed and will operate within -40deg C to +75 deg C, load carrying capacity will be reduced over +50 degrees C. Rod ends with a Steel / PTFE FRP sliding contact surface combination consist of a rod end housing and a spherical plain bearing inner ring. Between the housing and the inner ring, a sliding layer of fibre reinforced polymer, containing PTFE, is molded to the housing. Left and Right hand threaded versions are available an L in the part number denotes the left hand option. These are metric sized rod end bearings. Application: Suitable for heavy, constant direction loads, where low coefficient of friction is required; limited suitability for alternating loads, shock loads. Benefits: Maintenance free, Steel / PTFE FRP |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M16
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Inside Diameter:
- 16mm
- Material:
- PTFE FRP Lined
Technical
Technical
| d | 16mm |
|---|---|
| d2 max | 43mm |
| G | M16 |
| B | 21mm |
| C1 max | 15mm |
| h | 66mm |
| a | 15deg |
| Dynamic load C | 21.4 kN |
| Static load Co | 34.5 kN |
| Weight | 0.2 kg |
| dk | 28.5mm |
| l1 min | 37mm |
| l2 max | 89mm |
| r1 min | 0.3mm |
